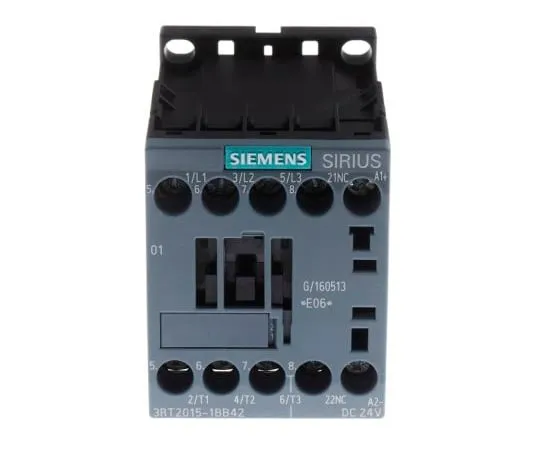

63-4987-41 Siemens 3 Pole Contactor, 7 A, 24 V dc Coil, SIRIUS Innovation, 3NO, 3 kW 3RT2015-1BB42
Electronic/Electrical Parts and Controll Equipments

63-4987-41 Siemens 3 Pole Contactor, 7 A, 24 V dc Coil, SIRIUS Innovation, 3NO, 3 kW 3RT2015-1BB42

model: 63-4987-41
brand: Siemens

Product Description

Product Model: 63-4987-41Product Brand: Siemens Feature […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4987-41
Product Brand: Siemens

Features

  • CE, UL, CSA, CCC. Screw terminals can only be ***d with screw terminal overloads and spring terminals can only be ***d with spring terminal overloads. Contactors – 3RT2 Range. The 3RT2 contactors are climate-proof and are suitable and tested for *** worldwide, sizes S00 to S2, up to 37 kW. Size S00, up to 7.5 kW Size S0, up to 18.5 kW Size S2, up to 37 kW Screw connection / Spring Clamp Impulse voltage resistance 6 kV Insulation voltage 690 V Real loss power only 4 W Designation K according to DIN 40719 (ext***able to IEC 204-2) ; IEC 750; Q according to DIN EN 61346-2

Spec

  • Quantity:1piece
  • Coil Voltage : 24 V dc
  • Number of Poles : 3
  • Contact Current Rating : 7 A
  • Power Rating : 3 kW
  • Range : SIRIUS Innovation
  • Series : 3RT2
  • Normal State Configuration : 3NO
  • Contact Voltage Rating : 400 V ac
  • Number Of Auxiliary Contacts : 1
  • Terminal Type : Screw
  • Width : 45mm
  • CODE No.:706-1071
