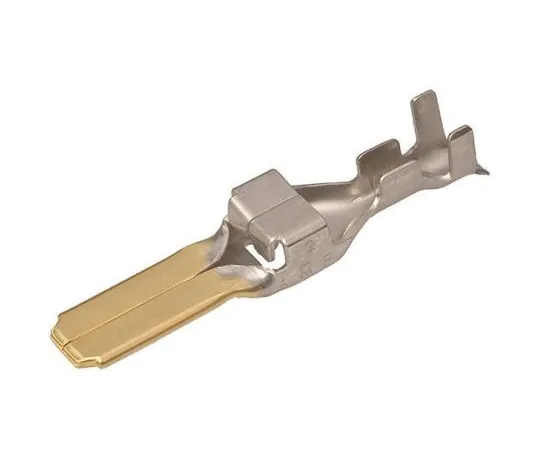

63-4987-22 TE Connectivity Dynamic 5000 Series, Female Crimp Circular Connector Contact for *** with L-Size Receptacle 1318697-6
Electronic/Electrical Parts and Controll Equipments

63-4987-22 TE Connectivity Dynamic 5000 Series, Female Crimp Circular Connector Contact for *** with L-Size Receptacle 1318697-6

model: 63-4987-22
brand: TE Connectivity

Product Description

Product Model: 63-4987-22Product Brand: TE Connectivity […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4987-22
Product Brand: TE Connectivity

Features

  • For mating D-5200 Series Housings see stock number ; 680-1001 680-1001 typical. TE Connectivity Dynamic 5000 Crimp Contacts. The D-5000 range of high current crimp receptacle and tab contacts are suitable for *** in the Dynamic Series D-5000 housings. The contacts have a twist resistant box shape design and three points of contact for a reliable electrical performance. These Dynamic 5000 series connector crimp contacts are available with gold plating as standard for high reliability or tin plating for more economical market needs. Silver plated versions of these contacts are also available for *** in high amperage applications. Available with a range of wire sizes from 20 AWG to 12 AWG these D-5000 crimp contacts offer the customer a wide choice dep***ing on specifications, application and cost. Features ; Benefits. Twist resistant box shape design Three points of contact for reliable electrical performance Manufactured from a high conductivity material to support current rating Gold plated versions for high reliability Silver plated versions for high amperage applications Wire range of wire sizes from 20 AWG to 12 AWG. Product Application Information. The Dynamic 5000 series connectors are designed for *** with high current power line applications

Spec

  • Quantity:1bag(5pieces)
  • G***er : Female
  • Termination Method : Crimp
  • Series : Dynamic 5000
  • For Use With : L-Size Receptacle
  • Length : 23.4mm
  • Contact Plating : Silver over Nickel
  • Voltage Rating : 630 V ac
  • Contact Material : Copper Alloy
  • Minimum Operating Temperature : -55°C
  • Maximum Operating Temperature : +105°C
  • Mounting Type : Cable Mount
  • CODE No.:706-0419
