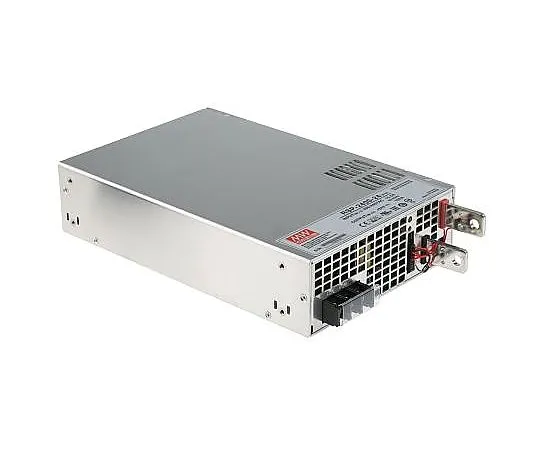

63-4987-08 Mean Well 2.4kW 1 Output Embedded Switch Mode Power Supply SMPS, 100A, 24V dc Enclosed RSP-2400-24RS
Product Description
Product Model: 63-4987-08Product Brand: Mean Well Featu […]
Contact Us
Product Details
Product Model: 63-4987-08
Product Brand: Mean Well
Features
- UL60950-1, EN60950-1. 3. RSP- 2400 Series Single Output Power Supply. AC input 180 → 264VAC AC input active surge current limiting High efficiency up to 91% Built-in active PFC function,PF>0.95 Protections: Short circuit, Overload, Over voltage, Over temperature, Fan alarm Forced air cooling by built-in DC with fan speed control function Output voltage can be trimmed between 20 → 110% of the rated output voltage High power density 12.5W/inch Current sharing up to 2 units Alarm signal output (relay contact and TTL signal) Built-in 12V/0.1A auxiliary output for remote control Built-in remote ON-OFF control Built-in remote sense function
Spec
- Quantity：1piece
- Output Voltage : 24V dc
- Output Current : 100A
- Power Rating : 2.4kW
- Number of Outputs : 1
- Input Voltage : 180 → 264 V ac, 254 → 370 V dc
- Mounting Type : Chassis Mount
- Package Type : Enclosed
- Length : 278mm
- Width : 177.8mm
- Depth : 63.5mm
- Weight : 3.3kg
- Efficiency : 90%
- Maximum Temperature : +70°C
- Minimum Temperature : -20°C
- CODE No.:705-9872
