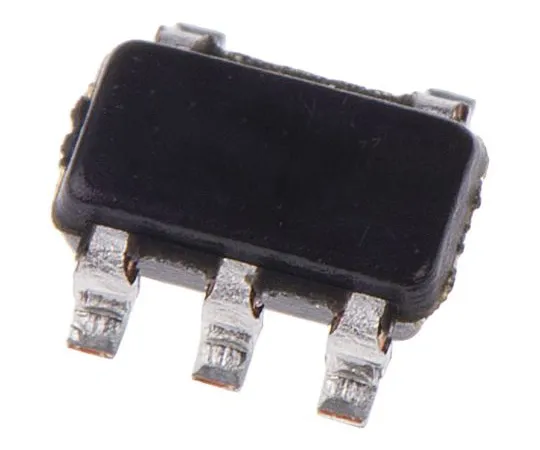

63-4986-30 Microchip MCP1804T-3302I/OT, LDO Regulator, 150mA, 3.3 V, ±2% 5-Pin, SOT-23 MCP1804T-3302I/OT
Electronic/Electrical Parts and Controll Equipments

63-4986-30 Microchip MCP1804T-3302I/OT, LDO Regulator, 150mA, 3.3 V, ±2% 5-Pin, SOT-23 MCP1804T-3302I/OT

model: 63-4986-30
brand: Microchip

Product Description

Product Model: 63-4986-30Product Brand: Microchip Featu […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4986-30
Product Brand: Microchip

Features

  • MCP1804 Low Dropout Voltage Regulator. The Microchip MCP1804 is a Low Dropout (LDO) Voltage Regulator that operates from an input of 2.0 V to 28 V while delivering up to 150 mA of current. The device offers a low quiescent current of 50 μA and only 1 μF of output capacitance is sufficient to stabilise the output. The MCP1804 also has a Current Foldback feature to **** protect the device. Features. 150 mA Output Current Low Dropout Voltage: 260 mV @ 20 mA, VR = 3.3 V (typical) 50 μA Quiescent Current (typical) 0.01 μA Shutdown Current (typical) Input Operating Voltage Range: 2.0 V to 28.0 V Output Voltage Accuracy: ±2% Stable with Ceramic Output Capacitors Current Limit Protection with Current Foldback Shutdown Pin High PSRR: 50 dB Typical @ 1 kHz

Spec

  • Quantity:1piece
  • Output Voltage : 3.3 V
  • Output Type : Fixed
  • Package Type : SOT-23
  • Maximum Output Current : 150mA
  • Mounting Type : Surface Mount
  • Minimum Input Voltage : 2 V
  • Maximum Input Voltage : 28 V
  • Pin Count : 5
  • Number of Outputs : 1
  • Quiescent Current : 0.05mA
  • Accuracy : ±2%
  • Minimum Operating Temperature : -40 °C
  • Maximum Operating Temperature : +85 °C
  • Height : 1.3mm
  • CODE No.:704-7637
