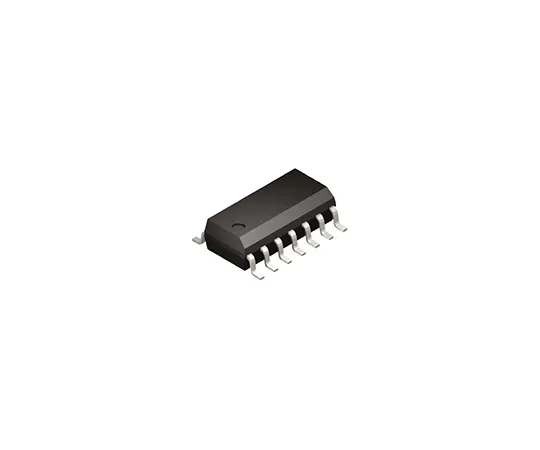

63-4985-40 Microchip PIC16F1823-E/SL, 8bit PIC Microcontroller, 32MHz, 256 B, 2K x 14 words Flash, 14-Pin SOIC PIC16F1823-E/SL
Electronic/Electrical Parts and Controll Equipments

63-4985-40 Microchip PIC16F1823-E/SL, 8bit PIC Microcontroller, 32MHz, 256 B, 2K x 14 words Flash, 14-Pin SOIC PIC16F1823-E/SL

model: 63-4985-40
brand: Microchip

Product Description

Product Model: 63-4985-40Product Brand: Microchip Featu […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4985-40
Product Brand: Microchip

Features

  • PIC16F1823 8-Bit Flash Microcontrollers. The PIC16F range of Microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications. The PIC16F1823 family of microcontrollers is based upon Microchip s Enhanced Mid-Range core with a 16 level deep hardware stack and 49 instructions. These MCUs provide up to 8 MIPS, 3.5 Kbytes program memory, 128 bytes RAM and 256 bytes EEPROM. On board is a configurable oscillator factory calibrated to ±1% accuracy. Microcontroller Features. 32 MHz Max. CPU Speed 49 Instructions 16 Level Hardware Stack 32 MHz Internal Oscillator – Selectable Frequency Range 32 MHz to 31 kHz 12 I/O Pins XLP Technology Power-On Reset (POR) Power-Up Timer (PWRT) Oscillator Start-Up Timer (OST) Brown-Out Reset (BOR) Watchdog Timer (WDT) In-Circuit Serial Programming (ICSP) In-Circuit Debug (ICD) Enhanced Low-Voltage Programming (LVP). Peripherals. 8 Channel 10-bit Analogue to Digital Converter (ADC) 8 Channel Capacitive Sensing (mTouchTM) Module Enhanced Capture/Compare/PWM (ECCP) Module Two Comparators Voltage Reference Module Two 8-bit Timers One 16-bit Timer Data Signal Modulator Module SR Latch

Spec

  • Quantity:1piece
  • Family Name : PIC16F
  • Package Type : SOIC
  • Mounting Type : Surface Mount
  • Pin Count : 14
  • Device Core : PIC
  • Data Bus Width : 8bit
  • Program Memory Size : 256 B, 2K x 14 words
  • Maximum Frequency : 32MHz
  • RAM Size : 128 B
  • USB Channels : 0
  • Number of PWM Units : 1
  • ADC Channels : 8
  • Number of SPI Channels : 1
  • Typical Operating Supply Voltage : 1.8 → 5.5 V
  • Number of Timers : 3
  • CODE No.:703-7838
