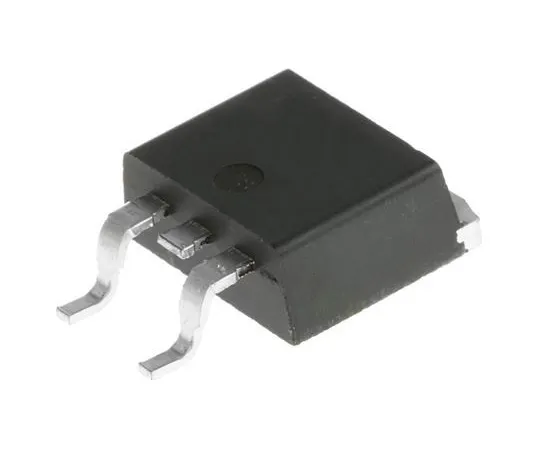

63-4983-84 Wolfspeed 600V 10A, SiC Schottky Diode, 3-Pin D2PAK C3D10060G C3D10060G
Product Description
Product Model: 63-4983-84Product Brand: Wolfspeed Featu […]
Contact Us
Product Details
Product Model: 63-4983-84
Product Brand: Wolfspeed
Features
- Z-Rec™ Silicon Carbide Schottky Diodes, Wolfspeed. A range of Wolfspeed SiC (Silicon Carbide) Schottky diodes offering significant improvements over standard Schottky barrier diodes. SiC diodes provide a much higher breakdown field strength and greater thermal conductivity coupled with a significant reduction in power-loss at high switching frequencies. Sic diodes are the perfect choice in high efficiency, high-voltage applications such as switch-mode power supplies and high-speed inverters. ; 600, 650, 1200 and 1700 Voltage ratings ; Zero reverse recovery current and forward recovery voltage ; Temperature-indep***ent switching behaviour ; Extremely fast switching times with minimal losses ; Positive temperature coefficient forward voltage ; Devices can be paralleled without thermal runaway ; Reduction in heatsink requirements ; Optimized for PFC boost diode applications
Spec
- Quantity:1piece
- Diode Configuration : Single
- Number of Elements per Chip : 1
- Peak Reverse Repetitive Voltage : 600V
- Mounting Type : Surface Mount
- Package Type : D2PAK (TO-263)
- Diode Type : SiC Schottky
- Pin Count : 3
- Maximum Forward Voltage Drop : 2.4V
- Peak Non-Repetitive Forward Surge Current : 250A
- CODE No.:702-7475
