63-4983-73 ITW Single Pole Single Throw (SPST) Momentary Push Button Switch, IP67, 1.49 (Dia.)mm, Panel Mount 57M 110N
Product Description
Product Model: 63-4983-73Product Brand: ITW Features 57 […]
Contact Us
Product Details
Product Model: 63-4983-73
Product Brand: ITW
Features

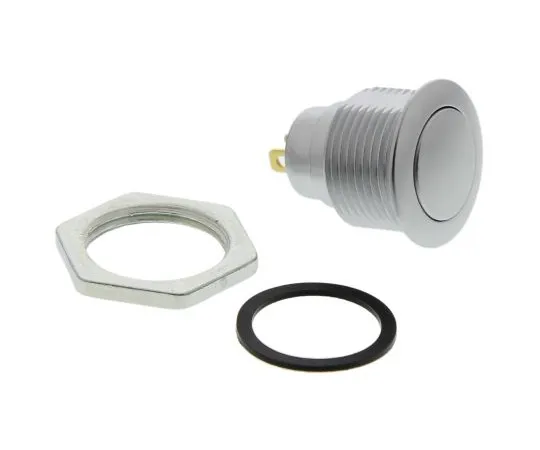

- 57M Series Panel-sealed Metal. Miniature metal bodied pushbutton switches panel-sealed to IP67. Chrome plated zinc alloy housing and actuator Gold-plated contacts and terminations SPNO contacts rated 250mA @ 12Vdc, 100mA 48Vdc 18.5mm bezel diameter, 16mm mounting hole Suitable for panel thickness of 0.5 to 3.0mm
Spec
- Quantity：1piece
- Switch Operation : Momentary
- Mounting Type : Panel Mount
- Illuminated : No
- Contact Configuration : Single Pole Single Throw (SPST)
- Panel Cut Out Size : 1.49 (Dia.)mm
- Panel Cut Out Diameter : 1.49mm
- IP Rating : IP67
- Actuator Colour : Chrome
- Contact Current Rating : 250 mA @ 12 V dc
- Actuator Shape : Round
- Terminal Type : Solder
- Case Colour : Chrome
- CODE No.:702-7178
