Electronic/Electrical Parts and Controll Equipments

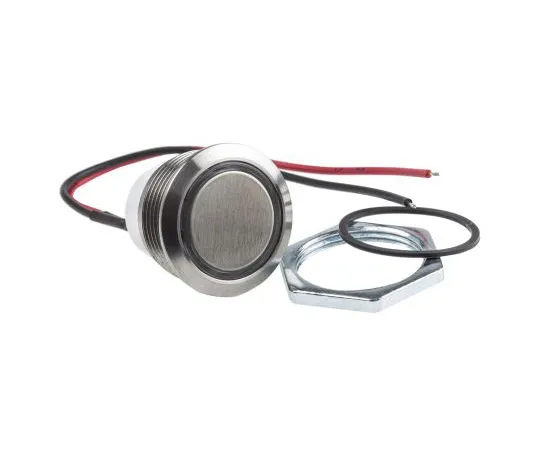

63-4983-65 ITW Single Pole Single Throw (SPST) Momentary Green LED Push Button Switch, IP67, 17.98 (Dia.)mm, Panel Mount 48M 112G
Product Description
Product Model: 63-4983-65Product Brand: ITW Features Fo […]
Contact Us
Product Details
Product Model: 63-4983-65
Product Brand: ITW
Features
- For RS Stock numbers ; 702-7096 702-7096 , ; 702-7099 702-7099 ; ; 702-7093 702-7093 a lighting resistor is required. 48M Series Panel-sealed Metal. Stainless steel ho***d panel-sealed pushbutton switches with centre-spot and ring-style LED illumination options. Ideal for industrial machinery, outdoor controls and kiosks, security products, food processing equipment and medical products. Rugged construction with IP67 panel sealing Gold-plated contacts and terminations SPNO contacts rated 250mA @ 12Vdc, 100mA 48Vdc Single hex nut panel fixing, 19.3mm panel cut-out Suitable for panel thickness of 1.3 to 3.8mm
Spec
- Quantity：1piece
- Switch Operation : Momentary
- Mounting Type : Panel Mount
- Illuminated : Yes
- Contact Configuration : Single Pole Single Throw (SPST)
- Panel Cut Out Size : 17.98 (Dia.)mm
- Panel Cut Out Diameter : 17.98mm
- LED Colour : Green
- IP Rating : IP67
- Actuator Colour : Silver
- Contact Current Rating : 250 mA @ 12 V dc
- Actuator Shape : Round
- Terminal Type : Solder
- Case Colour : Stainless Steel
- CODE No.:702-7093
