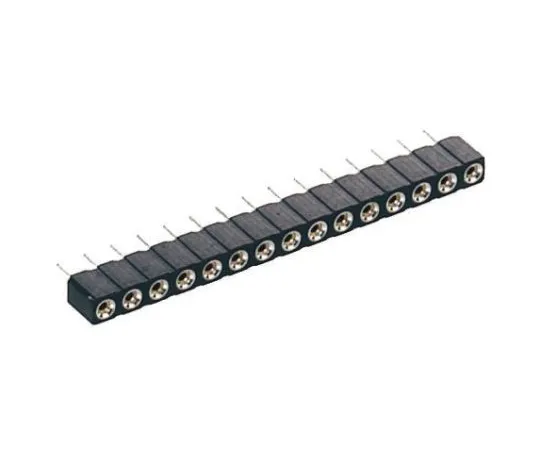

63-4983-40 4 Way Preci-Dip Straight Through Hole 2.54mm SIL Socket, Solder, 3A 100 V ac, 150 V dc 310-87-104-01-640101
Product Description
Product Model: 63-4983-40Product Brand: Preci-Dip Featu […]
Contact Us
Product Details
Product Model: 63-4983-40
Product Brand: Preci-Dip
Features
- UL 94V-0. 2.54 mm IC Sockets Ø 0.47 mm pin. These Swiss Preci-dip solder tail through hole Socket Connectors are for mating pin diameters of 0.47 mm. Sockets have Tin plated Brass sleeves with Flash Gold plated Beryllium Copper (4 finger) contact clips Through Hole connectors are Standoff type with a Pin length of 3.2 mm The SMD mounting connectors are Gull-Wing type
Spec
- Quantity：1bag(5pieces)
- Number of Contacts : 4
- Contact Material : Beryllium Copper, Brass
- Contact Plating : Gold, Tin
- Orientation : Straight
- Termination Method : Solder
- Mounting Type : Through Hole
- Housing Material : Glass Fibre Reinforced PCT
- Current Rating : 3A
- Voltage Rating : 100 V ac, 150 V dc
- Dimensions : 10.16 x 2.54 x 4.2mm
- Depth : 4.2mm
- Length : 10.16mm
- Maximum Operating Temperature : +125°C
- Minimum Operating Temperature : -55°C
- Width : 2.54mm
- CODE No.:702-2971
