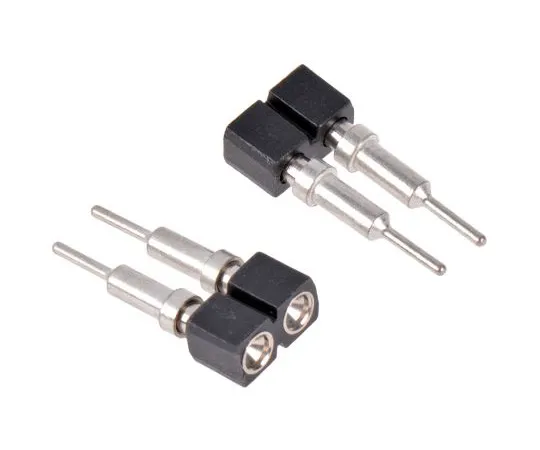

63-4983-31 2 Way Preci-Dip Straight Through Hole 2.54mm Socket Contact Carrier, Solder, 3A 100 V ac, 150 V dc 712-87-102-41-001101
Product Description
Product Model: 63-4983-31Product Brand: Preci-Dip Featu […]
Contact Us
Product Details
Product Model: 63-4983-31
Product Brand: Preci-Dip
Features
- UL 94V-0. 2.54 mm IC Socket Connectors zero profile. These Swiss Preci-dip Zero Profile IC Socket Connectors are for mating pin diameters of 0.47 mm. The single socket contacts for solder mounting into the PCB are supplied on disposable carriers. Sockets have Tin plated Brass sleeves with Flash Gold plated Beryllium Copper (4 finger) contact clips 712 Series are standard single socket contact with a solder tail with a length of 3.11 mm
Spec
- Quantity：1bag(5pieces)
- Number of Contacts : 2
- Contact Material : Beryllium Copper, Brass
- Contact Plating : Gold, Tin
- Orientation : Straight
- Termination Method : Solder
- Mounting Type : Through Hole
- Housing Material : Glass Fibre Reinforced PCT
- Current Rating : 3A
- Voltage Rating : 100 V ac, 150 V dc
- Dimensions : 5.08 x 1.83 x 4.26mm
- Depth : 4.26mm
- Length : 5.08mm
- Maximum Operating Temperature : +125°C
- Minimum Operating Temperature : -55°C
- Width : 1.83mm
- CODE No.:702-2824
