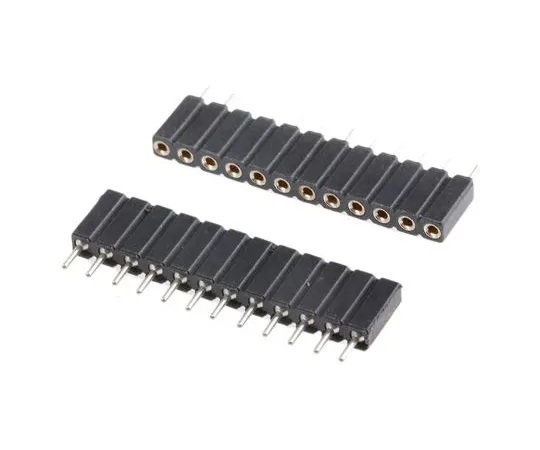

63-4983-30 12 Way Preci-Dip Straight Through Hole 2.54mm SIL Socket, Solder, 3A 100 V ac, 150 V dc 801-87-012-10-001101
Product Description
Product Model: 63-4983-30Product Brand: Preci-Dip Featu […]
Contact Us
Product Details
Product Model: 63-4983-30
Product Brand: Preci-Dip
Features
- UL 94V-0. 2.54 mm IC Sockets Ø 0.76 mm pin. Swiss Preci-dip Socket Connectors both Through Hole and SMD mountings. Sockets have Tin plated Brass sleeves with Flash Gold plated Beryllium Copper (4 finger) contact clips Right Angle SMD mounting are cranked pin type Straight SMD mounting are Gull-Wing type 80*-**-***- 10-012 *** Series are Low Profile straight headers
Spec
- Quantity：1bag(5pieces)
- Number of Contacts : 12
- Contact Material : Beryllium Copper, Brass
- Contact Plating : Gold, Tin
- Pitch : 2.54mm
- Termination Method : Solder
- Mounting Type : Through Hole
- Housing Material : Glass Fibre Reinforced PCT
- Current Rating : 3A
- Voltage Rating : 100 V ac, 150 V dc
- Dimensions : 30.48 x 2.54 x 7mm
- Depth : 7mm
- Length : 30.48mm
- Maximum Operating Temperature : +125°C
- Minimum Operating Temperature : -55°C
- Width : 2.54mm
- CODE No.:702-2814
