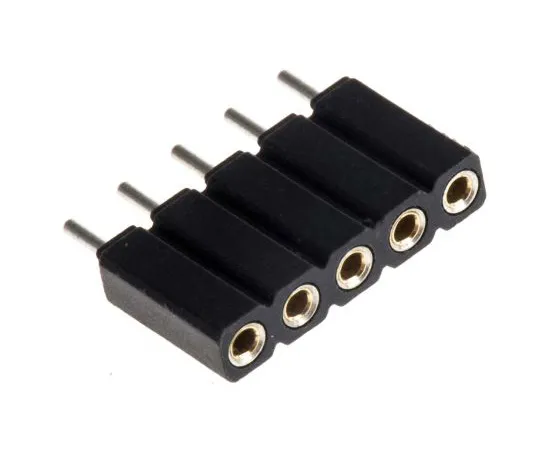

63-4983-21 5 Way Preci-Dip Straight Through Hole 2.54mm SIL Socket, Solder, 3A 100 V ac, 150 V dc 801-87-005-10-001101
Electronic/Electrical Parts and Controll Equipments

63-4983-21 5 Way Preci-Dip Straight Through Hole 2.54mm SIL Socket, Solder, 3A 100 V ac, 150 V dc 801-87-005-10-001101

model: 63-4983-21
brand: Preci-Dip

Product Description

Product Model: 63-4983-21Product Brand: Preci-Dip Featu […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4983-21
Product Brand: Preci-Dip

Features

  • UL 94V-0. 2.54 mm IC Sockets Ø 0.76 mm pin. Swiss Preci-dip Socket Connectors both Through Hole and SMD mountings. Sockets have Tin plated Brass sleeves with Flash Gold plated Beryllium Copper (4 finger) contact clips Right Angle SMD mounting are cranked pin type Straight SMD mounting are Gull-Wing type 80*-**-***- 10-012 *** Series are Low Profile straight headers

Spec

  • Quantity:1bag(5pieces)
  • Number of Contacts : 5
  • Contact Material : Beryllium Copper, Brass
  • Contact Plating : Gold, Tin
  • Orientation : Straight
  • Termination Method : Solder
  • Mounting Type : Through Hole
  • Housing Material : Glass Fibre Reinforced PCT
  • Current Rating : 3A
  • Voltage Rating : 100 V ac, 150 V dc
  • Dimensions : 12.7 x 2.54 x 7mm
  • Depth : 7mm
  • Length : 12.7mm
  • Maximum Operating Temperature : +125°C
  • Minimum Operating Temperature : -55°C
  • Width : 2.54mm
  • CODE No.:702-2763
