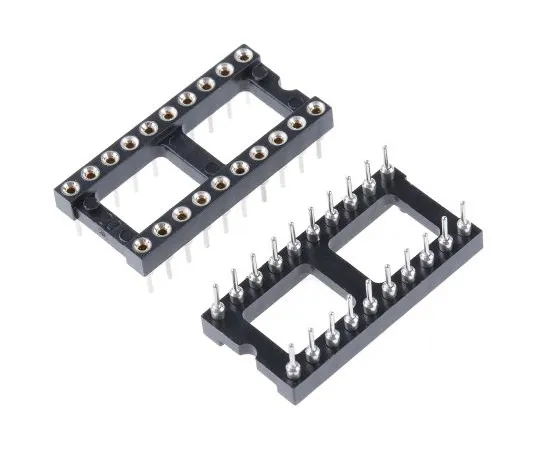

63-4983-17 Preci-Dip 2.54mm Pitch Vertical 20 Way, Through Hole Turned Pin Open Frame IC Dip Socket, 1A 110-87-420-41-001101
Electronic/Electrical Parts and Controll Equipments

63-4983-17 Preci-Dip 2.54mm Pitch Vertical 20 Way, Through Hole Turned Pin Open Frame IC Dip Socket, 1A 110-87-420-41-001101

model: 63-4983-17
brand: Preci-Dip

Product Description

Product Model: 63-4983-17Product Brand: Preci-Dip Featu […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4983-17
Product Brand: Preci-Dip

Features

  • UL 94V_0. 2.54 mm IC Sockets DIL open frame Preci-dip 110 Series. These Swiss Preci-dip Dual-In-Line 2.54mm pitch 110 Series sockets are open frame Through Hole or SMD perp***icular mounted connectors. The surface mount DIL sockets are designed for reflow soldering including vapour phase with Gull Wing terminations for maximum strength and and easy in-circuit test when mounted on PCB. Sleeves are Tin plated Brass with 4 finger Gold flash Contact Clips Stock numbers: 702-0691 , 702-2704 , 702-2701 , 702-2713 , 702-2767, 702-2779 , 702-2773 , 702-2798 and 702-2808 are without a centre bar Stock numbers: 702-2785 , 702-2798 , 702-2795 , 702-2808 , 702-2811 and 702-2818 have 2 centre bars

Spec

  • Quantity:1bag(5pieces)
  • Number of Contacts : 20
  • Mounting Type : Through Hole
  • Pin Type : Turned
  • Pitch : 2.54mm
  • Row Width : 10.16mm
  • Frame Type : Open Frame
  • Termination Method : Solder
  • Contact Plating : Gold, Tin
  • Current Rating : 1A
  • Orientation : Vertical
  • Length : 25.4mm
  • Width : 12.6mm
  • Depth : 2.8mm
  • Dimensions : 25.4 x 12.6 x 2.8mm
  • Housing Material : Glass Fibre Reinforced PET
  • CODE No.:702-2723
