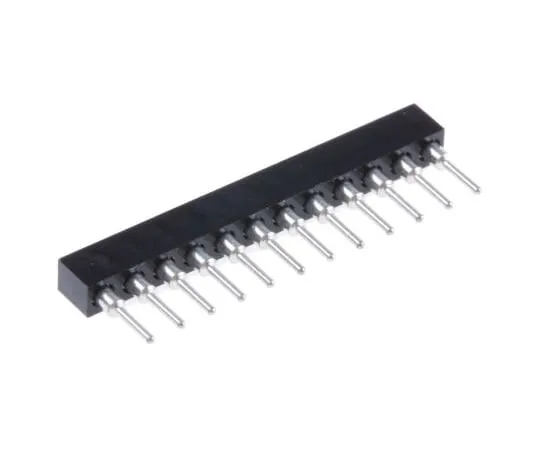

63-4983-10 12 Way Preci-Dip Straight Through Hole 2mm SIL Socket, Solder, 3A 100 V ac, 150 V dc 831-87-012-10-001101
Product Description
Product Model: 63-4983-10Product Brand: Preci-Dip Featu […]
Contact Us
Product Details
Product Model: 63-4983-10
Product Brand: Preci-Dip
Features
- UL 94V-0. 2 mm IC Sockets. These Swiss Preci-dip IC "Hard metric" PCB Socket Connector headers are solder tail Through Hole or SMD perp***icular Gull-Wing mount. Sockets have Tin plated Brass sleeves with Flash Gold plated Beryllium Copper (4 finger) contact clips The Through Hole headers have a Pin length of 3.2 mm Suitable for Mating Pin Ø 0.4 → 0.66 mm or 0.5 mm square
Spec
- Quantity：1bag(5pieces)
- Number of Contacts : 12
- Contact Material : Beryllium Copper, Brass
- Contact Plating : Gold, Tin
- Orientation : Straight
- Termination Method : Solder
- Mounting Type : Through Hole
- Housing Material : Glass Fibre Reinforced Liquid Crystal Polymer
- Current Rating : 3A
- Voltage Rating : 100 V ac, 150 V dc
- Dimensions : 24 x 2.2 x 4.2mm
- Depth : 4.2mm
- Length : 24mm
- Maximum Operating Temperature : +125°C
- Minimum Operating Temperature : -55°C
- Width : 2.2mm
- CODE No.:702-0663
