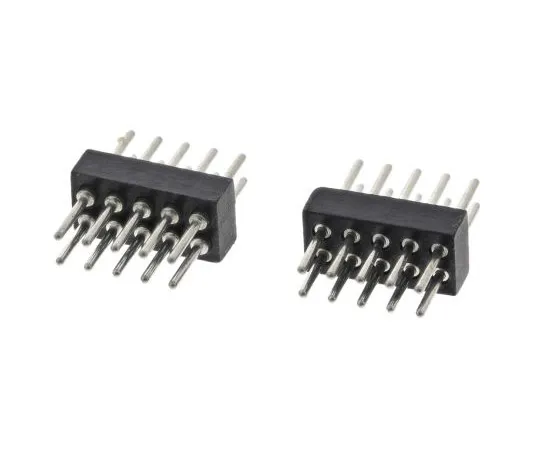

63-4982-97 Preci-Dip 1.27mm 10-Way PCB Header Pin, 2-Row Male, Through Hole, 852-80-010-10-001101 852-80-010-10-001101
Product Description
Product Model: 63-4982-97Product Brand: Preci-Dip Featu […]
Contact Us
Product Details
Product Model: 63-4982-97
Product Brand: Preci-Dip
Features
- UL 94V-0. 1.27 mm IC Pin Connectors Ø 0.41 mm pin. These Swiss Preci-dip IC Ultraminiature PCB Pin Connectors are solder tail Through Hole or SMD perp***icular mount headers. The SIL straight Through Hole headers have a Body height of 2.2 mm and Tail length of 2.9 mm The DIL straight Through Hole headers have a Body height of 2.1 mm and Tail length of 3 mm The SMD perp***icular mount headers are Gull-Wing type All have Brass Tin plated terminations
Spec
- Quantity：1bag(5pieces)
- Number of Contacts : 10
- Pitch : 1.27mm
- Number of Rows : 2
- G***er : Male
- Mounting Type : Through Hole
- Body Orientation : Straight
- Height : 2.1mm
- Termination Method : Solder
- Current Rating : 1A
- Contact Plating : Tin
- Housing Material : Glass Fibre Reinforced PET
- Contact Material : Brass
- Voltage Rating : 100 V ac, 150 V dc
- CODE No.:702-0262
