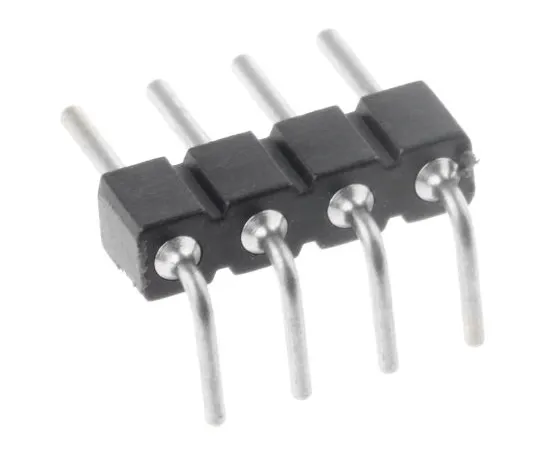

63-4982-86 Preci-Dip 2.54mm 4-Way PCB Header Pin, -Row Male, Through Hole, 800-80-004-20-001101 800-80-004-20-001101
Product Description
Product Model: 63-4982-86Product Brand: Preci-Dip Featu […]
Contact Us
Product Details
Product Model: 63-4982-86
Product Brand: Preci-Dip
Features
- UL 94V-0. IC Pin Connectors. Brought to you by Preci-Dip, the 800 Series of IC Pin Connectors are available as either solder tail through Hole 90° headers or straight SMD PCB headers. Each version has an 0.74mm diameter pin with a 2.54 mm pitch, and have brass, tin plated terminations. The Through Hole 90° headers have a tail length of 3.2 mm. The 800 Series of IC Pin Connectors are insulated with glass-filled polyester and have an operating temperature range of -55°C to +125°C. The connectors are available in 2 to 24 contact versions. The 80*-80-***- 30-001 *** SMD mounting headers are Gull-Wing type The 80*-80-***- 30-480 *** SMD mounting headers are Pad type
Spec
- Quantity：1bag(5pieces)
- Number of Contacts : 4
- Pitch : 2.54mm
- Number of Rows : 1
- G***er : Male
- Mounting Type : Through Hole
- Body Orientation : Right Angle
- Height : 2.54mm
- Termination Method : Solder
- Current Rating : 3A
- Contact Plating : Tin
- Housing Material : Glass Fibre Reinforced PET
- Contact Material : Brass
- Voltage Rating : 100 V ac, 150 V dc
- CODE No.:701-9786
