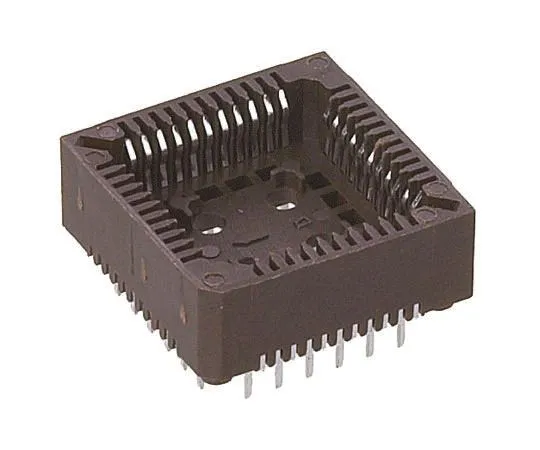

63-4982-82 Preci-Dip 1.27mm Pitch Female PLCC Socket, 68 Way, Through Hole, Tin Plated Contacts 1A 540-88-068-24-008
Electronic/Electrical Parts and Controll Equipments

63-4982-82 Preci-Dip 1.27mm Pitch Female PLCC Socket, 68 Way, Through Hole, Tin Plated Contacts 1A 540-88-068-24-008

model: 63-4982-82
brand: Preci-Dip

Product Description

Product Model: 63-4982-82Product Brand: Preci-Dip Featu […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4982-82
Product Brand: Preci-Dip

Features

  • UL 94V-0. Preci-dip 540 Series PLCC Sockets. These Swiss Preci-dip PLCC 540 Series sockets with SMT terminations to the PCB come with square sizes for IC packages according to JEDEC MO-047 and rectangular size (32 way) according to JEDEC MO-52, low profile. Tape ; Reel packs have Manufacturers Part Numbers ***ing in TR Contact pressure minimum 1.5 N per contact Mechanical life is a minimum of 50 cycles Capacitance maximum 2 pF Coplanarity SMD terminations maximum 0.1 mm

Spec

  • Quantity:1bag(5pieces)
  • G***er : Female
  • Number of Contacts : 68
  • Body Orientation : Straight
  • Contact Material : Phosphor Bronze
  • Pitch : 1.27mm
  • Contact Plating : Tin
  • Mounting Type : Through Hole
  • Termination Method : Solder
  • Current Rating : 1A
  • Voltage Rating : 100 V ac, 150 V dc
  • Housing Material : Glass Fibre Reinforced PPS
  • Height : 7.7mm
  • Maximum Operating Temperature : +125°C
  • Minimum Operating Temperature : -55°C
  • CODE No.:701-9402
