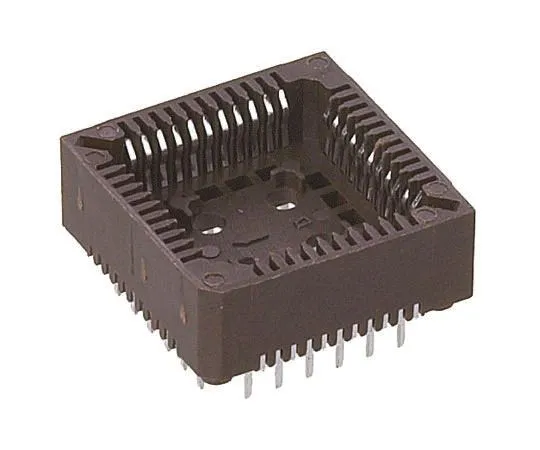

63-4982-81 Preci-Dip 1.27mm Pitch Female PLCC Socket, 32 Way, Through Hole, Tin Plated Contacts 1A 540-88-032-24-008
Product Description
Product Model: 63-4982-81Product Brand: Preci-Dip Featu […]
Contact Us
Product Details
Product Model: 63-4982-81
Product Brand: Preci-Dip
Features
- UL 94V-0. Preci-dip 540 Series PLCC Sockets. These Swiss Preci-dip PLCC 540 Series sockets with SMT terminations to the PCB come with square sizes for IC packages according to JEDEC MO-047 and rectangular size (32 way) according to JEDEC MO-52, low profile. Tape ; Reel packs have Manufacturers Part Numbers ***ing in TR Contact pressure minimum 1.5 N per contact Mechanical life is a minimum of 50 cycles Capacitance maximum 2 pF Coplanarity SMD terminations maximum 0.1 mm
Spec
- Quantity：1bag(5pieces)
- G***er : Female
- Number of Contacts : 32
- Body Orientation : Straight
- Contact Material : Phosphor Bronze
- Pitch : 1.27mm
- Contact Plating : Tin
- Mounting Type : Through Hole
- Termination Method : Solder
- Current Rating : 1A
- Voltage Rating : 100 V ac, 150 V dc
- Housing Material : Glass Fibre Reinforced PPS
- Height : 7.7mm
- Maximum Operating Temperature : +125°C
- Minimum Operating Temperature : -55°C
- CODE No.:701-9395
