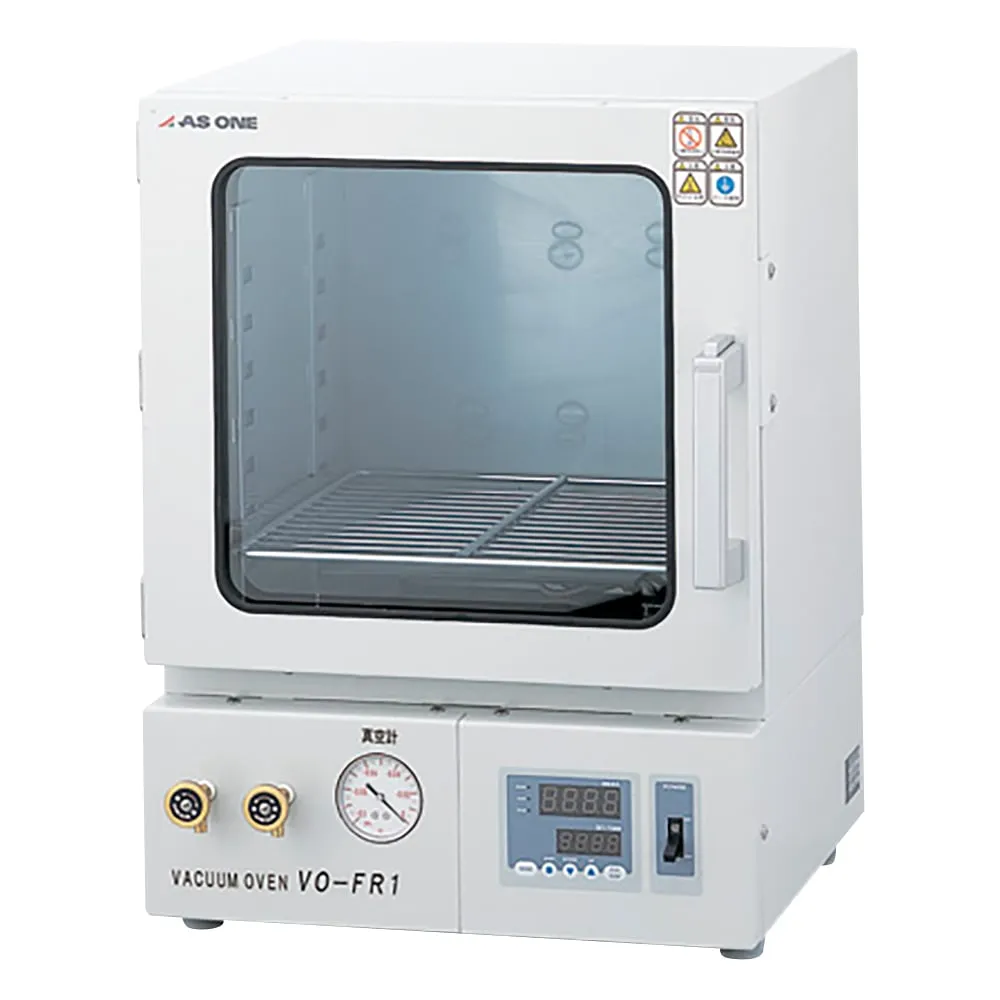

1-6000-01 Vacuum Dryer (Far-Infrared Type) VO-FR1
Product Description
Product Model: 1-6000-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-6000-01
Product Brand: AS ONE Corporation
Features
- The far-red heater installed in the vacuum chamber can shorten the drying time.
- Heater power consumption is less than 1/2 of conventional products.
- The vacuum room heating reduces the size and weight of the body.
Spec
- Heater capacity: 500 W
- Temperature range: R.T. to 275 ° C
- Vacuum room temperature control range: R.T. to 150 ° C
- Maximum temperature of dried product: 275 ° C
- The degree of vacuum reaches 133 Pa (1 Torr)
- Vacuum chamber material: stainless steel (SUS304)
- Observation window Dimensions: 280 x 270 mm
- Vacuum valve hose diameter: φ8 mm
- power supply: AC100V 50 / 60Hz
- power cord: about 1.5 m (3P Plug)
- inner dimension (mm): 300 x 300 x 275
- Weight: About 31 kg
- Accessories: Gold rack and 2 pieces
- Recomm***ed pumps: (1-672-07) oil rotation vacuum pumps G-50 SA
- * The target material will increase significantly from inside temperature due to the drying object, so please be careful when selecting models
- Model number: VO-FR1
