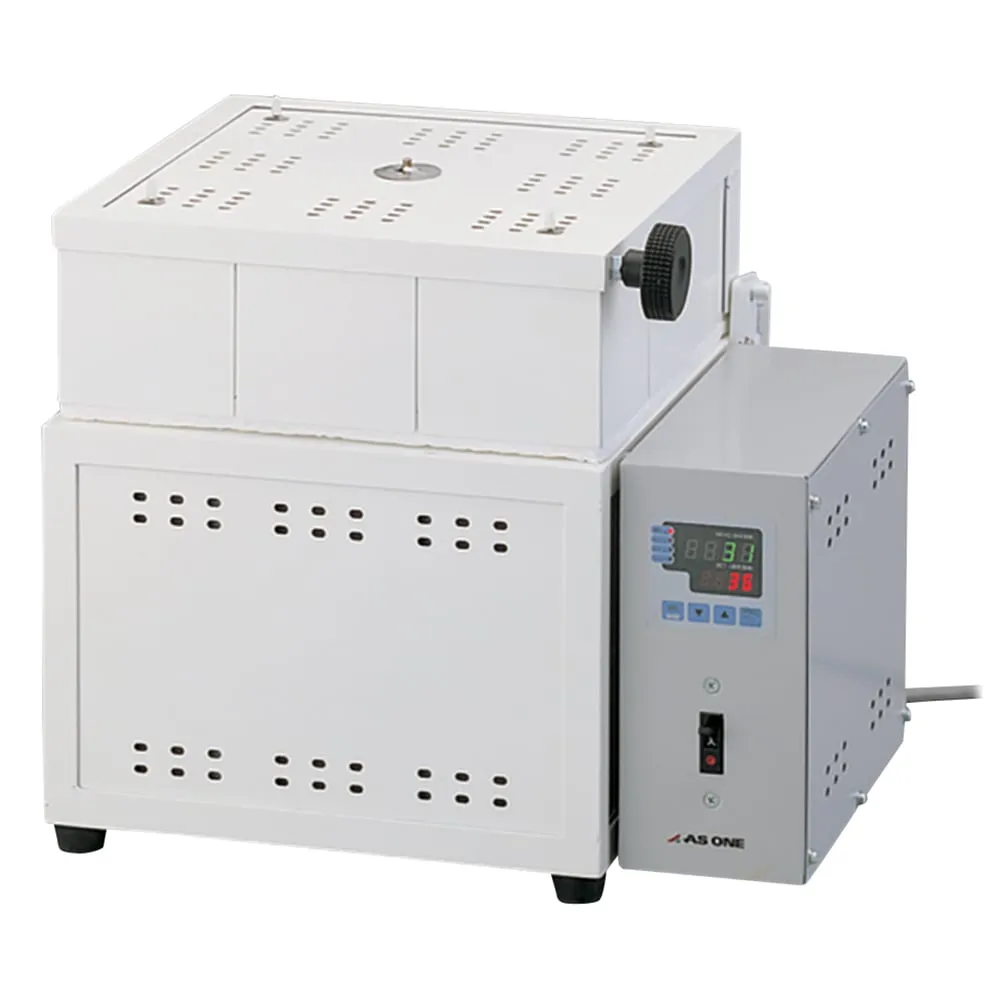

1-5929-01-22 Program Electric Furnace (Upper Opening/Closing Type) with Pre-Shipment Inspection Document RMF-100
Product Description
Product Model: 1-5929-01-22Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-5929-01-22
Product Brand: AS ONE Corporation
Features
- The top opening type makes it easy to take the crucible in and out.
- Since a wide range of temperature settings is possible, it can be ***d for material (metal/inorganic compound) testing, heat treatment, etc.
- Quick temperature rise speed, reaching maximum temperature (1200°C) in 20 minutes.
- Up to 4 patterns of 16 step program can be set, and the temperature rise speed can also be set.
Spec
- Model Number: RMF-100
- External Dimensions: 440 x 345 x 373 mm
- Furnace internal dimensions (mm): 100 x 100 x 100 * Including protrusions. Please check the drawing for details.
- Internal Capacity (L): 1
- Temperature Setting Range: 100~1200°C
- Temperature setting resolution: 1°C
- Normal Maximum Temperature: 1200°C
- Temperature control system: PID control SSR output
- Sensor: R Thermocouple
- Heater Capacity: Kanthal Heater 4 Sides (All Sides) Total 1400 W
- Program function: 16 steps, 4 patterns
- Time Setting Range: 0 Minute - 99 hours 59 minutes (1 minute increments)
- Safety Mechanism: Sensor Abnormality Detection/Set Temperature Interlocking Type Excess Temperature Rise Prevention Relay/No F*** Breaker
- Material: Exterior/Furnace/Fireproof Insulation
- Power: 100 VAC 50/60Hz Approx. 14 A
- Power Cord Length: 2 m (3P Plug)
- Weight: Approx. 20 kg
- programmed
- *Furnace internal dimensions include sensor projections.
- This product can provide inspection and inspection services. Please contact us.
- *The inspection and inspection service is a service that inspects the control system (internal temperature measurement, etc.) and the electric locomotive at the time of shipment or at the customer's site, and issues inspection reports.
- *Shipping, delivery, installation and assembly costs are required separately. Please contact us.
*This product might require extra fees.
