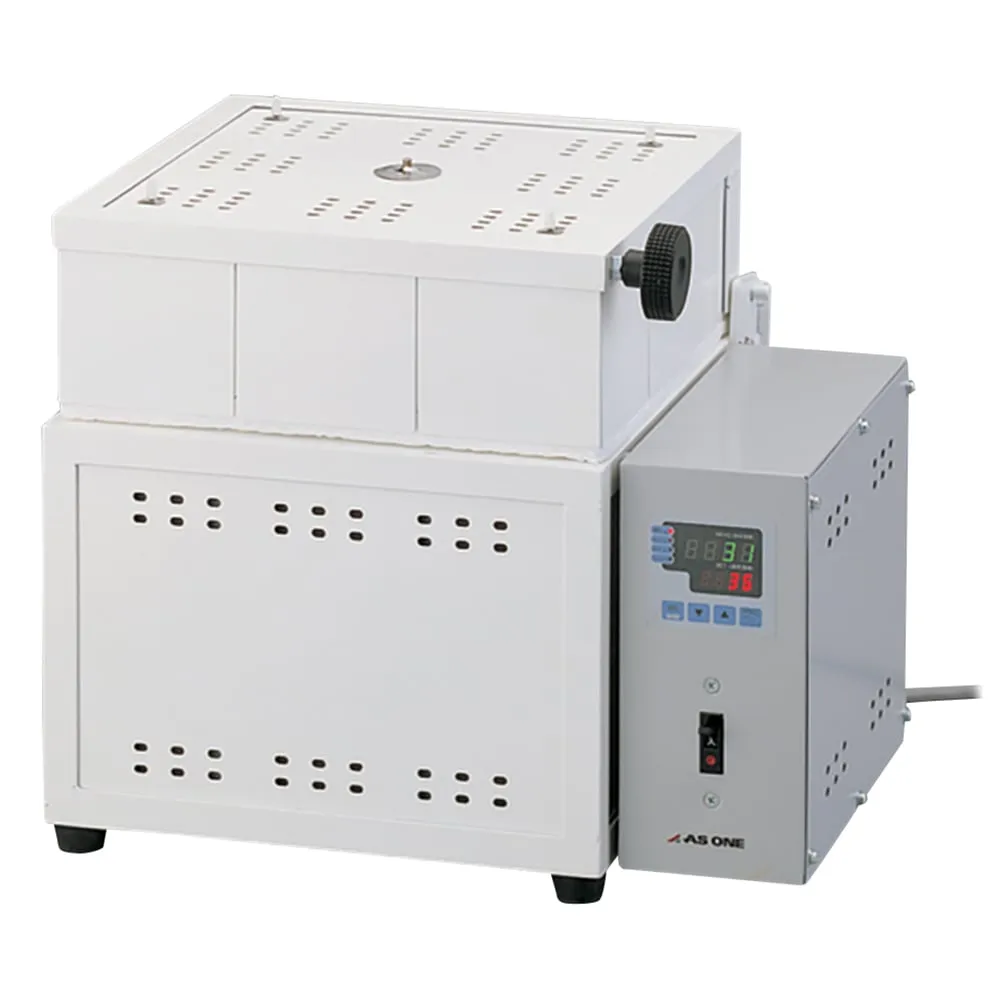

1-5929-01 Program Crucible Furnace RMF-100
Product Description
Product Model: 1-5929-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-5929-01
Product Brand: AS ONE Corporation
Features
- The top opening/closing type makes it easy to take the crucible in and out.
- Since a wide range of temperature settings is possible, it can be ***d for testing materials (metals and inorganic compounds) and heat treatment.
- The temperature rise speed is fast and the maximum temperature (1200°C) can be reached in 20 minutes.
- Up to 4 patterns of 16 step programs can be set, and the temperature rise rate can also be set.
Spec
- Model number: RMF-100
- External dimensions: 440 x 345 x 373mm
- Inner furnace dimension (mm): 100 x 100 x 100 *Including protrusions. Please see the drawings for more details.
- Temperature settings range: 100 - 1200℃
- Temperature setting resolution: 1℃
- Normal maximum temperature: 1200℃
- Temperature adjustment system: PID control SSR output
- Sensor: R class thermocouple
- Heater capacity: KANTHAL heater 4 sides (all sides), total 1400W
- Program function: 16 steps, 4 patterns
- Time settings range: 0 minutes - 99 hours 59 minutes (1 minute unit)
- Safety mechanism: Sensor abnormality detection, set temperature interlocking type excessive rise prevention relay, no f*** breaker
- Material: Exterior, furnace body/fireproof insulation material
- Power supply: 100VAC 50/60Hz approx 14A
- Power cord length: 2m (3P plug)
- Weight: Approx 20kg
- Program type
*This product might require extra fees.
