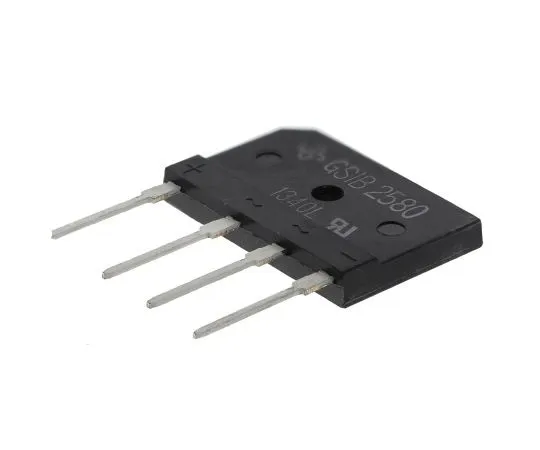

63-4979-89 Vishay GSIB2580-E3/45, Bridge Rectifier, 25A 800V, 4-Pin GSIB-5S GSIB2580-E3/45
Product Description
Product Model: 63-4979-89Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-4979-89
Product Brand: Vishay
Features
- UL file E54214. SIL PCB Mounting, GSIB-5 Series, Vishay Semiconductor. GSIB-5 series bridge rectifiers in SIL PCB Mounting package from Vishay Semiconductor. Thin Single In-Line GSIB-5 package Glass passivated chip junction High surge current capability High dielectric strength case of 2500Vrms Soldering pins for Printed Circuit Board (PCB) through-hole mounting
Spec
- Quantity：1bag(2pieces)
- Bridge Type : Single Phase
- Peak Average Forward Current : 25A
- Peak Reverse Repetitive Voltage : 800V
- Mounting Type : Through Hole
- Package Type : GSIB-5S
- Pin Count : 4
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 350A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -55 °C
- Peak Forward Voltage : 1V
- Peak Reverse Current : 10µA
- Length : 30mm
- Width : 4.6mm
- CODE No.:700-5469
