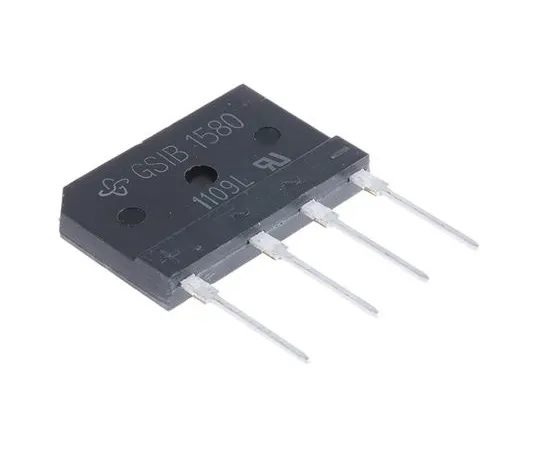

63-4979-88 Vishay GSIB1580-E3/45, Bridge Rectifier, 3.5A 800V, 4-Pin GSIB-5S GSIB1580-E3/45
Product Description
Product Model: 63-4979-88Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-4979-88
Product Brand: Vishay
Features
- UL file E54214. SIL PCB Mounting, GSIB-5 Series, Vishay Semiconductor. GSIB-5 series bridge rectifiers in SIL PCB Mounting package from Vishay Semiconductor. Thin Single In-Line GSIB-5 package Glass passivated chip junction High surge current capability High dielectric strength case of 2500Vrms Soldering pins for Printed Circuit Board (PCB) through-hole mounting
Spec
- Quantity：1bag(2pieces)
- Bridge Type : Single Phase
- Peak Average Forward Current : 3.5A
- Peak Reverse Repetitive Voltage : 800V
- Mounting Type : Through Hole
- Package Type : GSIB-5S
- Pin Count : 4
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 300A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -55 °C
- Peak Forward Voltage : 950mV
- Peak Reverse Current : 10µA
- Length : 30mm
- Width : 4.6mm
- CODE No.:700-5465
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-8024-25 Thomas & Betts, Ty-Rap Series Black Nylon Weather Resistant Cable Tie, 185.67mm x 4.83 mm 7TAG009210R0045 TY25MX
model: 63-8024-25
brand: Thomas & Betts
Electronic/Electrical Parts and Controll Equipments
63-5041-87 Nichicon 100μF 25V dc Aluminium Electrolytic Capacitor, Surface Mount 8 (Dia.) x 10mm +105°C 8mm 3.1mm UUX1E101MNL1GS
model: 63-5041-87
brand: NICHICON
Electronic/Electrical Parts and Controll Equipments
63-7334-60 Decelect Forgos Grey Cat5 Cable F/UTP, 1m Male RJ45/Male RJ45 SPE190718
model: 63-7334-60
brand: Decelect Forgos
Electronic/Electrical Parts and Controll Equipments

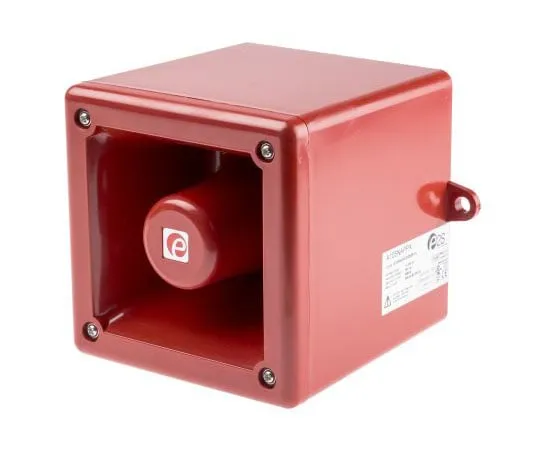

63-7960-39 Red User Recordable Voice Alarm, 110dB, 24 V dc A105NAXDC024R-UL
