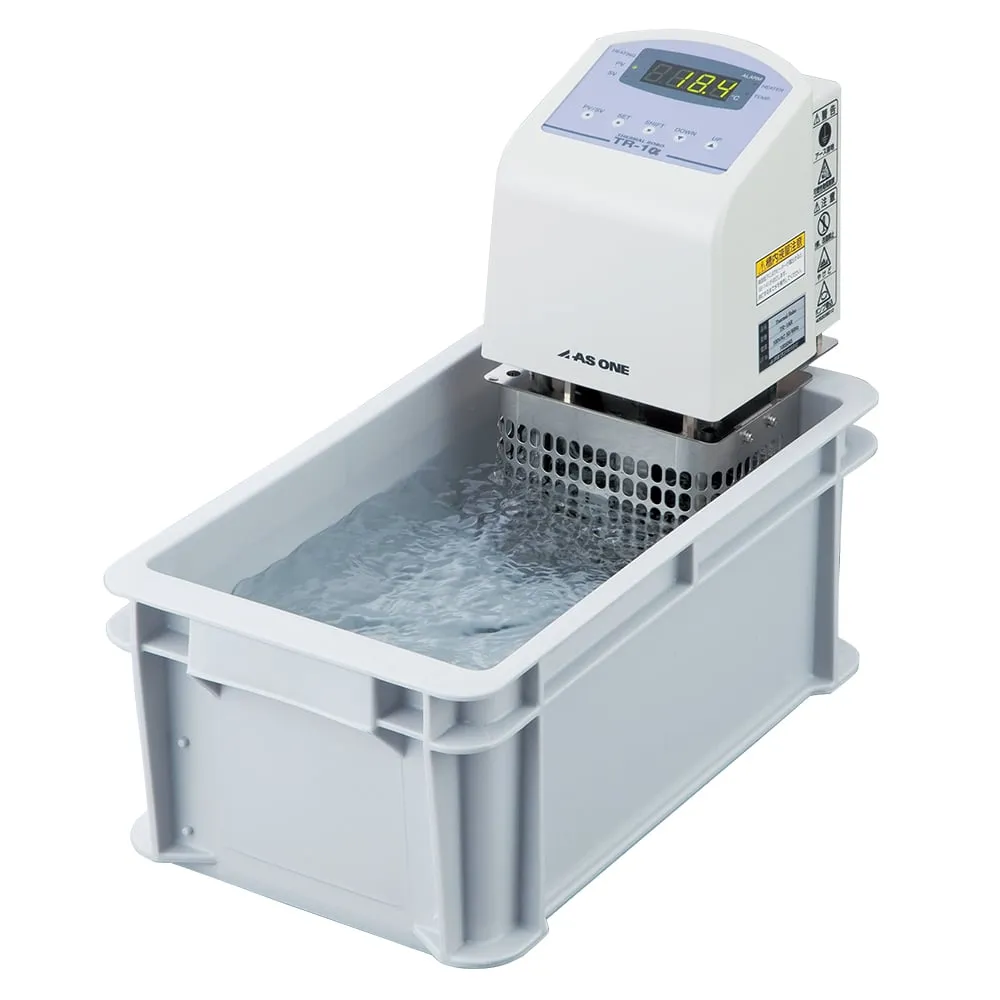

1-5832-41-22 Thermal Robo Inspection/Inspection Letter TR-1
Product Description
Product Model: 1-5832-41-22Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-5832-41-22
Product Brand: AS ONE Corporation
Features
- All models come with float type dry heating prevention function! In addition, there is a lineup of flow-adjustable types!
- The microcomputer PID control provides highly accurate temperature control.
- High safety is achieved by adopting a double lock mechanism consisting of two indep***ent circuits.
- Equipped with an on/off timer function, it can automatically start or stop after a set time.
Spec
- External dimensions (mm): 140 x 150 x 310
- Tank internal dimensions (mm): 194 x 336 x 156
- Type: Water Bath
- Temperature control range: room temperature + 5 ~ 80 degrees C (MAX 70 degrees C when using attached water tank)
- Temperature setting range * 1: -20.0 to + 80.0 degrees C
- Temperature control accuracy * 2: from +/- 0.05 degrees C
- Function
- ON Timer/OFF Timer
- Abnormal Overheat Prevention Device (Thermostat)/Circuit Protector/Float Type Dry Heating Prevention
- Sensors: Thermistors
- Heater capacity: 1 kW (made of stainless steel (SUS 316))
- Stirring mechanism: jet stirring type
- Pump capacity: maximum discharge/10 L/min, maximum head/1.4 m (pump alone)
- Timer setting range: 1 minute to 99 hours (in 1-minute increments)
- Clamp mountable width: 40 mm
- Power: 100 VAC 50/60 Hz (Power consumption: MAX 1.1 kVA)
- Accessories: PP (polypropylene) water tank
- *1 The unit does not have a cooling function. Use an external (optional) cooling device.
- *2 Performance of the controller alone. Dep***s on conditions of ***.
