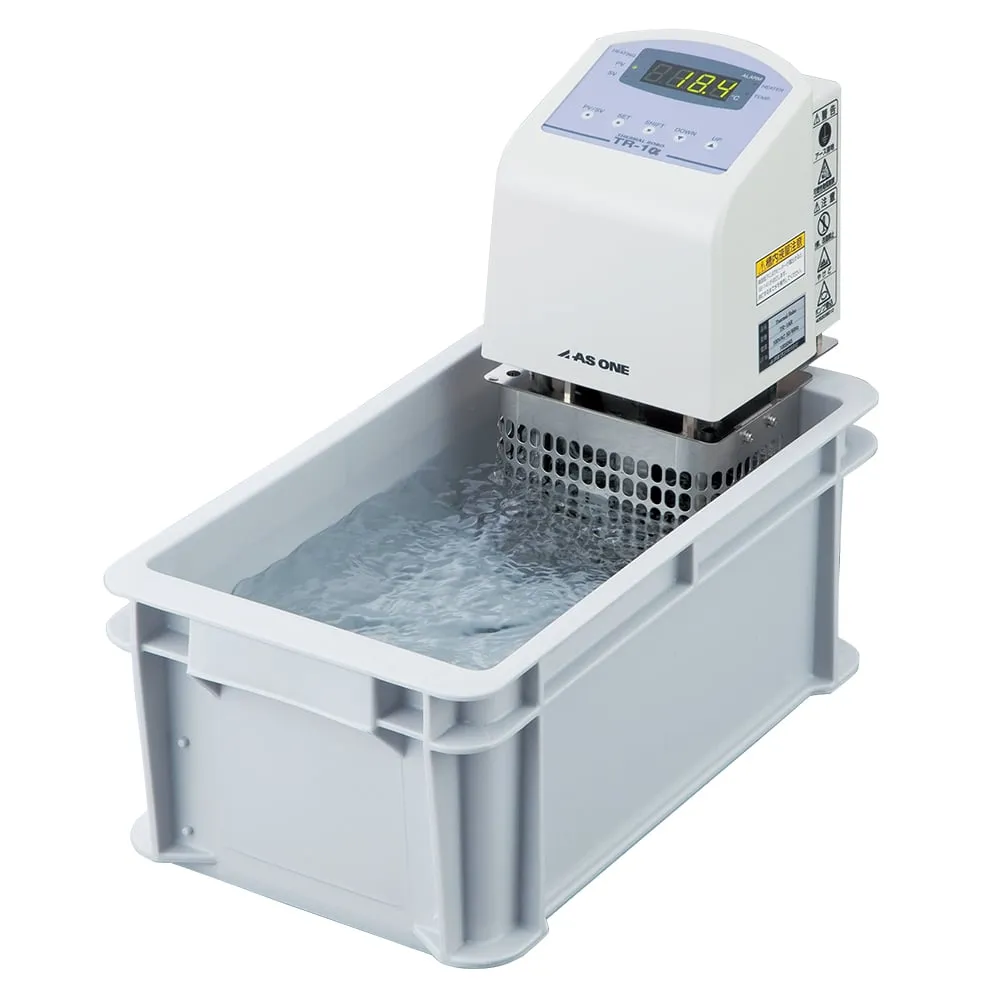

1-5832-41 Thermal Robot TR-1α
Product Description
Product Model: 1-5832-41Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-5832-41
Product Brand: AS ONE Corporation
Features
- All models come with float type dry heating prevention function! In addition, there is a lineup of flow-adjustable types!
- The microcomputer PID control provides highly accurate temperature control.
- High safety is achieved by adopting a double lock mechanism consisting of two indep***ent circuits.
- Equipped with an on/off timer function, it can automatically start or stop after a set time.
Spec
- external dimension (mm) : 140 x 150 x 310
- tank inner size (mm) : 194 x 336 x 156
- Type: Waterbath
- Temperature Control Range: R.T. + 5 to 80 ° C (When using the attached water tank, max. 70 ° C)
- temperature settings range ※ 1: -20.0 to + 80.0 ° C
- Temperature Adjustment Precision * 2: ± 0.05 ° C to
- FEATURES
- ON Timer/OFF Timer
- Abnormal Overheat Prevention Device (thermostat)/Circuit Protector/Float Type Dry-Heating Prevention
- sensors: thermistors
- Heater capacity: 1 kW (Made of Stainless Steel (SUS316))
- Stirring Mechanism: Jet Stirring Type
- pumps ability : discharge amount max/10 L/min , lifting height max/1.4 m (pumps non-consolidated)
- Timer setting range: 1 minute to 99 hours (1 Minute Units)
- Clamp Mountable Width: 40 mm
- power supply : AC100V 50/60 Hz (Power Consumption : MAX 1.1 kVA)
- Accessories: PP (Polypropylene) water tank
- *1 The unit does not have a cooling function. Use an external (Options) cooling device.
- *2 Performance of the controller alone. It dep***s on the usage conditions.
- RoHS3 (EU)2015/863 Certificates can be issued
