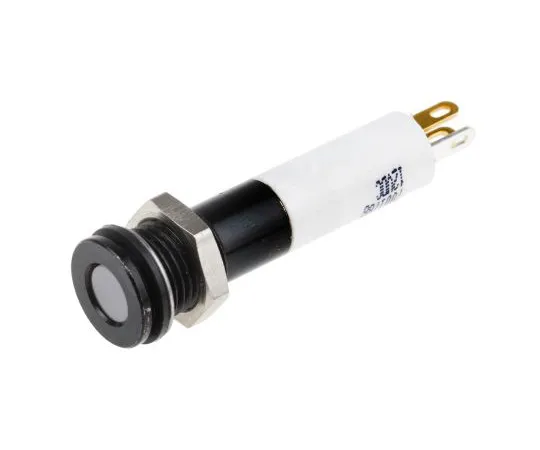

63-4977-95 RS PRO Green, Red, Yellow Indicator, 12 V dc, 8mm Mounting Hole Size, Solder Tab Termination, IP67 700-1788
Product Description
Product Model: 63-4977-95Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4977-95
Product Brand: RS PRO
Features
- UL. fixing nut, spring washer. LED Indicators, 8mm Mount, 12/24Vdc ; 220Vac, Flush Black Chrome Bezel. Brought to you under the trusted RS Pro, these LED indicators have diff***d epoxy lenses and a flush black chrome bezel. The body features solder lug terminals and is sealed to an ingress protection of IP67, assuring suitability for *** in harsh environments and even outdoor applications. LED indicators give a high level of brightness and a long life at low energy consumption, making them ideal for a variety of equipment applications. Features and Benefits:. 5mm coloured diff***d epoxy lens Maximum panel thickness 7mm Solder lug/faston terminals Sealed to IP67 Life expectancy of 100000
Spec
- Quantity:1piece
- Voltage Rating : 12 V dc
- Light Output Colour : Green, Red, Yellow
- Mounting Hole Size : 8mm
- Lamp Type : LED
- Lamp Size : 5 mm
- Termination Type : Solder Tab
- IP Rating : IP67
- Bezel Style : Flush
- Bezel Colour : Black Chrome
- Current Rating : 20 mA
- Intensity : 10 (Red) mcd, 6 (Yellow) mcd, 8 (Green) mcd
- Length : 33.9 mm
- CODE No.:700-1788
