Electronic/Electrical Parts and Controll Equipments

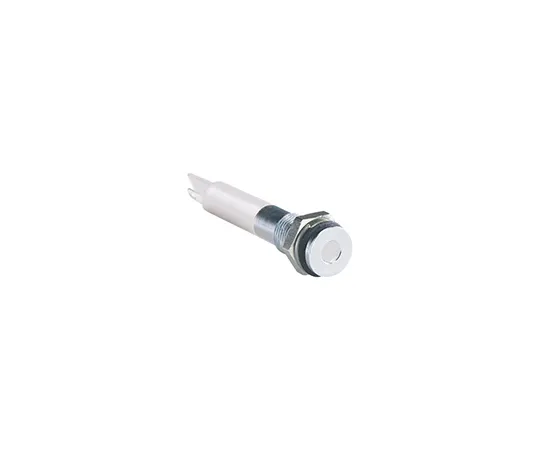

63-4977-60 RS PRO White Indicator, 12 V dc, 6mm Mounting Hole Size, Solder Tab Termination, IP67 700-1570
Product Description
Product Model: 63-4977-60Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4977-60
Product Brand: RS PRO
Features
- UL. fixing nut, spring washer. LED Indicators, 6mm Mount, 12 ; 24Vdc, Flush Bezel. Brought to you under the trusted RS Pro, these LED indicators have diff***d epoxy lenses and a flush chrome bezel. The body features convenient solder lug terminals and is sealed to an ingress protection of IP67, assuring suitability for *** in harsh environments and even outdoor applications. LED indicators give a high level of brightness and a long life at low energy consumption, making them ideal for a variety of equipment applications. 3mm coloured diff***d epoxy lens Maximum panel thickness 7mm Gold Faston terminal de****s Anode (+), silver terminal de****s Cathode (-) Bi-colour LEDs, by connecting the gold Faston (+) one colour is produced, by reversing the supply voltage another colour is produced
Spec
- Quantity:1piece
- Voltage Rating : 12 V dc
- Light Output Colour : White
- Mounting Hole Size : 6mm
- Lamp Type : LED
- Lamp Size : 3 mm
- Termination Type : Solder Tab
- IP Rating : IP67
- Bezel Style : Flush
- Bezel Colour : Chrome
- Current Rating : 20 mA
- Intensity : 15 mcd
- Length : 27 mm
- CODE No.:700-1570
