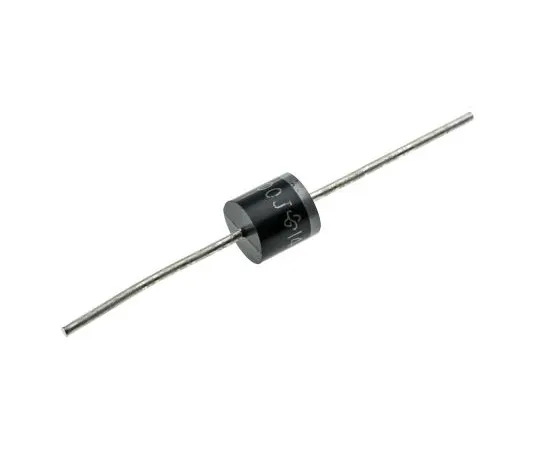

63-4977-52 Vishay 600V 6A, Silicon Junction Diode, 2-Pin P600 P600J-E3/54 P600J-E3/54
Product Description
Product Model: 63-4977-52Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-4977-52
Product Brand: Vishay
Features
- Vishay P600A-P600M General Purpose Plastic Rectifiers. The Vishay P600x are a series of general purpose plastic rectifiers in a P600 epoxy package. They are designed for general purpose rectification of power supplies, inverters, converters and freewheeling diodes. Features: Low voltage drop Low leakage current High forward current and surge capabilities What is the operating junction temperature? -50°C to +150°C Versions Available: P600A - 50V P600B - 100V P600D - 200V P600G - 400V P600J - 600V P600K - 800V P600M - 1000V
Spec
- Quantity：1bag(10pieces)
- Diode Configuration : Single
- Number of Elements per Chip : 1
- Peak Reverse Repetitive Voltage : 600V
- Mounting Type : Through Hole
- Package Type : P600
- Diode Type : Silicon Junction
- Pin Count : 2
- Maximum Forward Voltage Drop : 1.3V
- Peak Reverse Recovery Time : 2.5µs
- Diameter : 9.1mm
- Peak Non-Repetitive Forward Surge Current : 400A
- CODE No.:700-1202
- RoHS3 (EU)2015/863 Certificates can be issued
