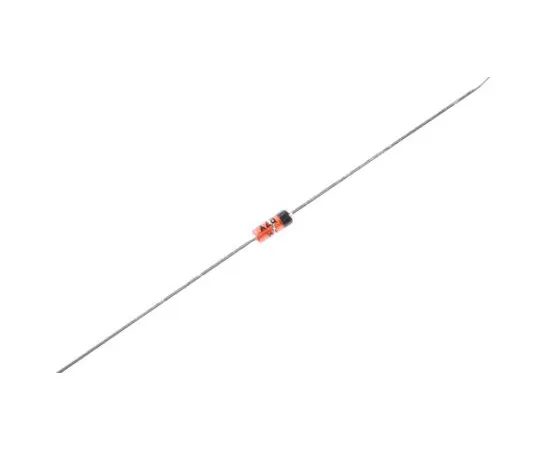

63-4977-07 Vishay, 18V Zener Diode 6% 500 mW Through Hole 2-Pin DO-35 BZX55C18-TAP
Product Description
Product Model: 63-4977-07Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-4977-07
Product Brand: Vishay
Features
- Zener Diodes 500mW, BZX55C Series, Vishay Semiconductor. Small Signal Zener Diodes Very sharp reverse characteristic Low reverse current level Very high stability Low noise AEC-Q101 qualified
Spec
- Quantity：1bag(250pieces)
- Diode Configuration : Single
- Number of Elements per Chip : 1
- Maximum Power Dissipation : 500 mW
- Package Type : DO-35
- Zener Type : Voltage Regulator
- Zener Voltage Tolerance : 6%
- Pin Count : 2
- Test Current : 5mA
- Maximum Zener Impedance : 170Ω
- Maximum Reverse Leakage Current : 2µA
- Length : 3.9mm
- Diameter : 1.7mm
- Dimensions : 1.7 (Dia.) x 3.9mm
- Typical Voltage Temperature Coefficient : 0.03 %/°C, 0.11 %/°C
- CODE No.:699-7795
