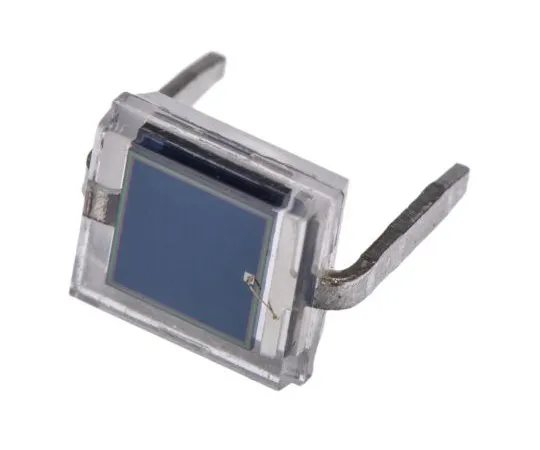

63-4976-78 Vishay, BPW34 IR + Visible Light Si Photodiode, 65 °, Through Hole BPW34
Product Description
Product Model: 63-4976-78Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-4976-78
Product Brand: Vishay
Features
- BPW34 Series PIN Photodiodes. The BPW34 series, from Vishay Semiconductor, are silicon PIN photodiodes. They are in clear plastic miniature packages with a flat top. The BPW34 photodiodes are sensitive to visible and near IR radiation. They are suitable for high speed photo detector applications.. Features of the BPW34 photodiodes: Top view Dimensions: 5.4 x 4.3 x 3.2 mm Radiant sensitive area: 7.5 mm² High photo sensitivity High radiant sensitivity Fast response times Angle of half intensity: 65°
Spec
- Quantity：1bag(5pieces)
- Spectrums Detected : Infrared, Visible Light
- Wavelength of Peak Sensitivity : 900nm
- Mounting Type : Through Hole
- Number of Pins : 2
- Diode Material : Si
- Minimum Wavelength Detected : 430nm
- Maximum Wavelength Detected : 1100nm
- Length : 4.5mm
- Width : 4.3mm
- Height : 2mm
- Polarity : Forward
- CODE No.:699-7616
