Features

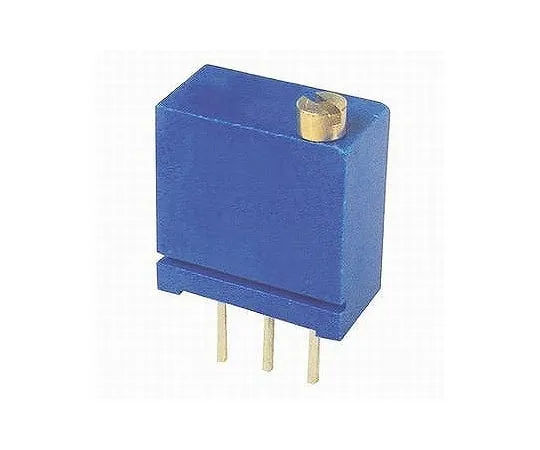

• The multi-rotation trimmer potentiometer is a high-precision trimmer resistor (semi-fixed resistor). At the same time that the resistance value is physically stable, it goes from the minimum value to the maximum value 25 times. The change per revolution is 1/25 and can be finely adjusted.
• Mounting: Through Hole
• Adjustment Direction: Top
• Rotation Speed: 25 Rotations
• Rated Power (70°C): ~0.5 W (Max)
• Resistance Value: 100 Ω
• Resistance Tolerance: ±20% (Max)
• Resistance Temperature Coefficient: ~±200ppm (Max)
• Resistance Variation Characteristics :-
• Maximum Operating Voltage: DC500V (Max)
• Operating Temperature Range: -45~+125°C (Typ)
• External Shape: 9 mm x 4 mm x 11 mm
• Adjustment Driver: Negative
• Number of Pieces: 1
• Rotation Life: 200 Cycles (typ)
