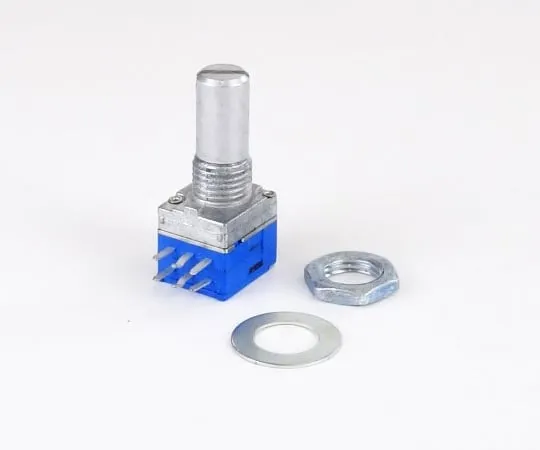

63-3104-15 Double Volume A characteristic 10 kohm RD925G-QA1-A103
Electronic/Electrical Parts and Controll Equipments

63-3104-15 Double Volume A characteristic 10 kohm RD925G-QA1-A103

model: 63-3104-15
brand: Linkman

Product Description

Product Model: 63-3104-15Product Brand: Linkman Feature […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-3104-15
Product Brand: Linkman

Features

  • This series has a shaft diameter of φ6mm and a double variable resistor. Even if the image photo is the same, there may be a difference in the length of the axis, so check the specifications (numerical values). Variable resistors have different types of relationship between the angle of rotation of the shaft and the change in resistance, usually the A curve, the B curve, and rarely the C curve.
  • The A-curve is an exponential change that is ideal for audio volume control.
  • The B-curve is a linear change and is ***d to adjust the voltage of general equipment.
  • The C-curve is the reverse of the A-curve, and is ***d to adjust the gain of the amplifier. This is a typical specification (10 kΩ, A-curve) for volume adjustment of a double volume. Although it is a board mounting type, it can be mounted on a panel. In general, stress and heat applied to the terminals can ca*** failure, so be particularly careful. In order to solder the wire directly, the terminal is short, so please try to make a universal and small sub board.
  • Resistance Variation Characteristics: A Characteristics
  • Resistance Value: 10KΩ
  • Resistance Tolerance: ±20%
  • Rated Power: 0.025 W
  • External: 10 mm x 12 mm x 9 mm
  • Shaft (φD x L): φ6 x 15 mm
  • Shaft: Groove Shape
  • Mechanical Rotation Angle :-
  • Operating Temperature Range :-
  • Mounting :-
  • Rotational Life :-
  • Mounting: Board Mounting
  • Application: Volume Volume, etc.

Spec
