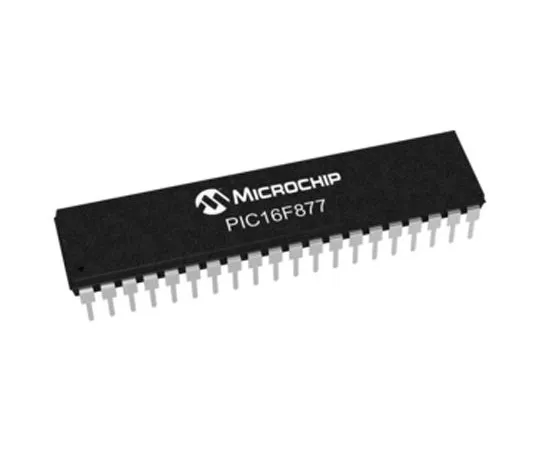

63-4975-94 Microchip PIC16F877-20I/P, 8bit PIC Microcontroller, 20MHz, 256 x 8 words, 8K x 14 words Flash, 40-Pin PDIP PIC16F877-20I/P
Product Description
Product Model: 63-4975-94Product Brand: Microchip Featu […]
Contact Us
Product Details
Product Model: 63-4975-94
Product Brand: Microchip
Features
- PIC16F873/874/876/877 8-Bit Flash Microcontrollers. The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications. The PIC16F873/874/876/877 family of microcontrollers is based upon Microchip s Mid-Range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, 3.5 Kbytes program memory, 128 bytes RAM and EEPROM of 64 bytes. Microcontroller Features. 20 MHz Max. CPU Speed 35 Instructions 8 Level Hardware Stack 22 I/O Pins – PIC16F873/876 33 I/O Pins – PIC16F874/877 Power-On Reset (POR) Brown-Out Reset (BOR) Power-Up Timer (PWRT) Oscillator Start-Up Timer (OST) Watchdog Timer (WDT) In-Circuit Serial Programming (ICSP) In-Circuit Debug (ICD). Peripherals. 10-bit Analogue-to-Digital Converter (ADC) - PIC16F873/876 5 Channels, PIC16F874/877 8 Channels Two Capture, Compare, PWM (CCP) Modules Two 8-bit Timers One 16-bit Timer Synchronous Serial Port (SSP) with SPI and I2C Universal Synchronous Asynchronous Receiver Transmitter (USART) Parallel Slave Port (PSP) – PIC16F874/877 Models Only
Spec
- Quantity:1piece
- Family Name : PIC16F
- Package Type : PDIP
- Mounting Type : Through Hole
- Pin Count : 40
- Device Core : PIC
- Data Bus Width : 8bit
- Program Memory Size : 256 x 8 words, 8K x 14 words
- Maximum Frequency : 20MHz
- RAM Size : 368 B
- USB Channels : 0
- Number of PWM Units : 2
- ADC Channels : 8
- Number of SPI Channels : 1
- Typical Operating Supply Voltage : 4 → 5.5 V
- Width : 14.22mm
- CODE No.:698-9000
