Features

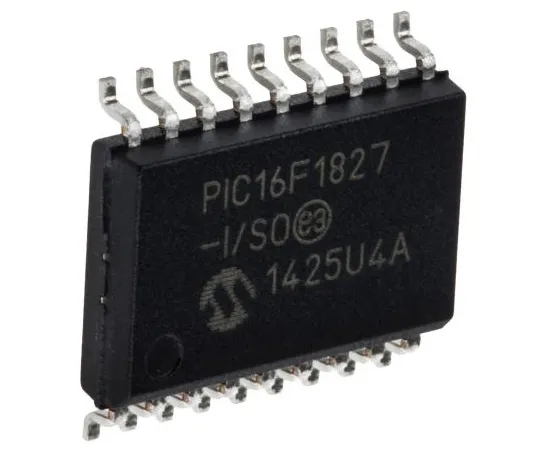

• PIC16F1826/1827 8-Bit Flash Microcontrollers. The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications. The PIC16F1826/1827 family of microcontrollers is based upon Microchip s enhanced mid-range core with a 16 level deep hardware stack and 49 instructions. These MCUs provide up to 8 MIPS, up to 7 Kbytes program memory, up to 384 bytes RAM and Data EEPROM of 256 bytes. On board is a configurable oscillator with ±1% accuracy. Microcontroller Features. 32 MHz Max. CPU Speed 49 Instructions 16 Level Hardware Stack 32 MHz Internal Oscillator – Selectable Frequency Range 32 MHz to 31 kHz 16 I/O Pins nanoWatt XLP Technology Power-On Reset (POR) Power-Up Timer (PWRT) Oscillator Start-Up Timer (OST) Brown-Out Reset (BOR) Ext***ed Watchdog Timer (WDT) Enhanced Low-Voltage Programming (LVP) In-Circuit Serial Programming (ICSP) In-Circuit Debug (ICD). Peripherals. 12 Channel 10-bit Analogue to Digital Converter (ADC) 12 Channel mTouchTM Capacitive Sensor Module Two Capture/Compare/PWM (CCP) Modules – PIC16F1827 Only Enhanced Capture/Compare/PWM (ECCP) Modules – PIC16F1826 x 1, PIC16F1827 x 2 Two Comparators 8-bit Timers – PIC16F1826 x 2, PIC16F1827 x 4 One 16-bit Timer Master Synchronous Serial Port (MSSP) with SPI and I2C – PIC16F1826 x 1, PIC16F1827 x 2 Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART) Fixed Voltage Reference (FVR) Data Signal Modulator Module SR Latch
