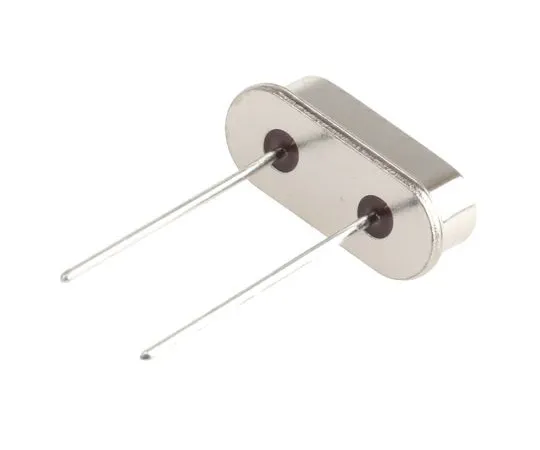

63-4972-51 RALTRON 16MHz Crystal ±50ppm HC-49-S 2-Pin 11.35 x 5 x 3.5mm AS-16.000-18
Product Description
Product Model: 63-4972-51Product Brand: RALTRON Feature […]
Contact Us
Product Details
Product Model: 63-4972-51
Product Brand: RALTRON
Features
- HC49S Raltron
Spec
- Quantity：1bag(10pieces)
- Standard Frequency : 16MHz
- Mounting Type : Through Hole
- Load Capacitance : 18pF
- Package Type : HC-49-S
- Pin Count : 2
- Length : 11.35mm
- Width : 5mm
- Height : 3.5mm
- Dimensions : 11.35 x 5 x 3.5mm
- Frequency Tolerance : ±50ppm
- Frequency Stability : ±100ppm
- Series Resistance : 40Ω
- Minimum Operating Temperature : -40 °C
- Maximum Operating Temperature : +85 °C
- CODE No.:693-6970
