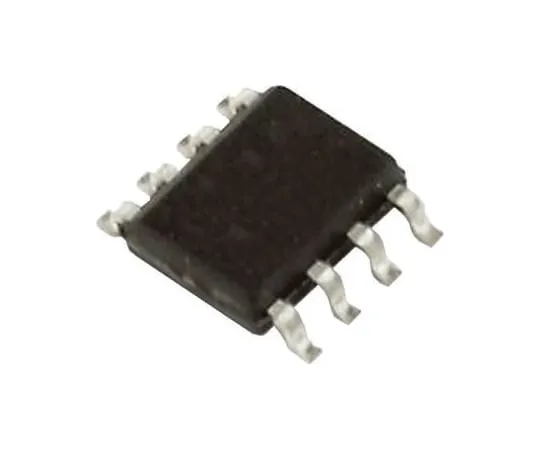

63-4972-31 ACPL-C784-000E Broadcom, Isolation Amplifier, 5 V, 8-Pin SSOP ACPL-C784-000E
Electronic/Electrical Parts and Controll Equipments

63-4972-31 ACPL-C784-000E Broadcom, Isolation Amplifier, 5 V, 8-Pin SSOP ACPL-C784-000E

model: 63-4972-31
brand: Broadcom

Product Description

Product Model: 63-4972-31Product Brand: Broadcom Featur […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4972-31
Product Brand: Broadcom

Features

  • Isolating Amplifiers, Avago Technologies. The range of isolation amplifier optocouplers from Avago Technologies is ideal for industrial environments where the optocoupler is ***d to insulate high voltages and isolate any unwanted signals. Sigma-delta modulator technology allows the current and voltage sensor families to provide precise measurements of phase current and bus voltage in motor drives, power inverters and voltage signals in general isolation circuits. These isolation amplifiers offer high CMR (common mode rejection) performance and built-in safety insulation. They are a suitable alternative to the Hall Effect isolation amplifiers, for current and voltage sensing in power converters. Various types available including: precision isolation amplifiers miniature isolation amplifiers precision optically isolated voltage sensors isolated linear sensing ICs isolation amplifiers with short circuit and overload detection automotive isolation amplifiers

Spec

  • Quantity:1piece
  • Power Supply Type : Single
  • Typical Single Supply Voltage : 5 V
  • Isolation Mode Rejection : 76dB
  • Number of Channels per Chip : 1
  • Maximum Voltage Gain : 18.49dB
  • Mounting Type : Surface Mount
  • Package Type : SSOP
  • Pin Count : 8
  • Dimensions : 3.18 x 5.85 x 6.81mm
  • Height : 3.18mm
  • Width : 6.81mm
  • Length : 5.85mm
  • Minimum Operating Temperature : -40 °C
  • CODE No.:693-5965
