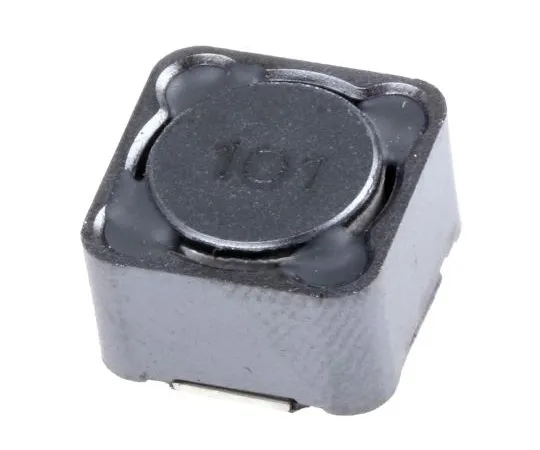

63-4972-03 Bourns SRR1280 Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 100 μH ±20% Wire-Wound 2.1A Idc Q:18 SRR1280-101M
Electronic/Electrical Parts and Controll Equipments

63-4972-03 Bourns SRR1280 Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 100 μH ±20% Wire-Wound 2.1A Idc Q:18 SRR1280-101M

model: 63-4972-03
brand: Bourns

Product Description

Product Model: 63-4972-03Product Brand: Bourns Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4972-03
Product Brand: Bourns

Features

  • SRR1280 Series Magnetically Shielded Wire Wound Inductors. Bourns SRR1280 Series SMD Shielded Power Inductors with a low profile of only 7.5mm. Applications include input/output of DC/DC converters and power supplies for: Portable communication equipment; Camcorders; LCD TVs; Car radios. High current rating Ideal for high frequencies

Spec

  • Quantity:1piece
  • Inductance : 100 μH
  • Maximum DC Current : 2.1A
  • Length : 12.5mm
  • Depth : 12.5mm
  • Height : 7.5mm
  • Dimensions : 12.5 x 12.5 x 7.5mm
  • Shielded : Yes
  • Tolerance : ±20%
  • Maximum DC Resistance : 150mΩ
  • Series : SRR1280
  • Core Material : Ferrite
  • Maximum Self Resonant Frequency : 4.5MHz
  • Minimum Quality Factor : 18
  • CODE No.:693-4640
