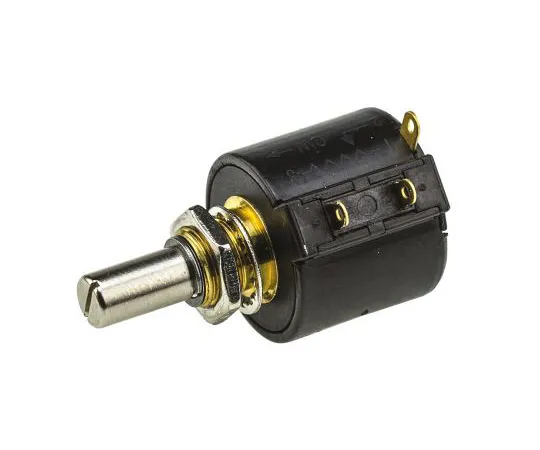

63-4971-21 Bourns 1 Gang 10 Turn Rotary Wirewound Potentiometer with a 6.35 mm Dia. Shaft, 10kΩ, ±3%, 2W, Linear 3549S-1AA-103A 3549S-1AA-103A
Electronic/Electrical Parts and Controll Equipments

63-4971-21 Bourns 1 Gang 10 Turn Rotary Wirewound Potentiometer with a 6.35 mm Dia. Shaft, 10kΩ, ±3%, 2W, Linear 3549S-1AA-103A 3549S-1AA-103A

model: 63-4971-21
brand: Bourns

Product Description

Product Model: 63-4971-21Product Brand: Bourns Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4971-21
Product Brand: Bourns

Features

  • Hybritron® products feature a wirewound element with conductive polymer coating, allowing effectively infinite resolution. 3549 Series 22mm 10 Turn Precision Potentiometer. The 3549 Series 10 turn precision potentiometers are designed for *** in harsh environmental conditions, providing reliability and excellent performance over traditional optical and contacting encoders. Applications for the 3549 series precision potentiometers include: medical diagnostic and imaging equipment; patient mobility and therapy equipment; industrial automation; test and measurement; motorized aircraft seats; Application where analogue position sensing is required. Wirewound and Hybritron® elements High rotational life Suitable for *** under side load Designed for HMI and MMI applications Dual gang option Servo mount option

Spec

  • Quantity:1piece
  • Potentiometer Type : Rotary
  • Maximum Resistance : 10kΩ
  • Number of Gangs : 1
  • Number of Turns : 10
  • Power Rating : 2W
  • Electrical Taper : Linear
  • Element Material : Wirewound
  • Mounting Type : Panel Mount
  • Termination Style : Solder Lug
  • Shaft Length : 20.6mm
  • Shaft Diameter : 6.35 mm
  • Tolerance : ±3%
  • Series : 3549
  • CODE No.:692-8516
