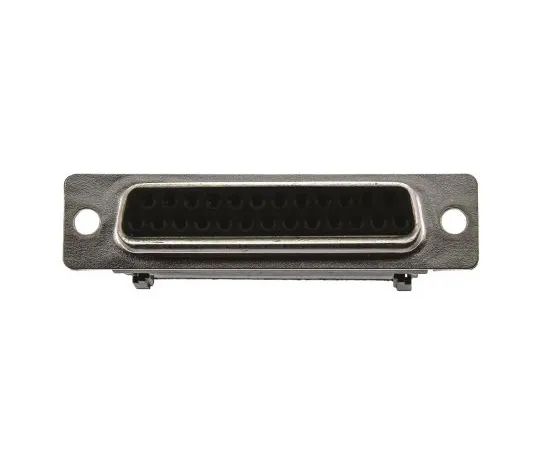

63-4969-69 Amphenol DFR Series 2.77mm Pitch 25 Way IDC D-Sub Ribbon Cable Connector, Socket, Steel Shell L17DBFRA25S
Product Description
Product Model: 63-4969-69Product Brand: Amphenol Featur […]
Contact Us
Product Details
Product Model: 63-4969-69
Product Brand: Amphenol
Features
- Amphenol DFR Series Flat Ribbon IDC D-Sub Socket Connector. DFR Series IDC D-Sub receptacle connectors for *** with standard 1.27mm flat cable. These DFR IDC ribbon cable d-sub socket connectors have a tin plated steel shell, a glass-filled thermoplastic UL 94V-0 insulator, gold flash plated IDC socket contacts and M3 screwlocks for front mounting. Typical applications for these female DFR flat ribbon cable d-sub connectors include industrial, telecom and any industry standard I/O applications. For mating DFR IDC D-Sub plug connectors see stock number ; 691-8998 691-8998 typically.
Spec
- Quantity：1piece
- G***er : Female
- Number of Contacts : 25
- Body Orientation : Right Angle
- Pitch : 2.77mm
- Contact Material : Phosphor Bronze
- Contact Plating : Gold over Nickel
- Housing Material : Steel
- Current Rating : 5A
- Voltage Rating : 250 V ac
- Dimensions : 53.04 x 12.55 x 17.48mm
- Series : DFR
- Depth : 17.48mm
- Length : 53.04mm
- Minimum Operating Temperature : -40°C
- CODE No.:691-9014
