Electronic/Electrical Parts and Controll Equipments

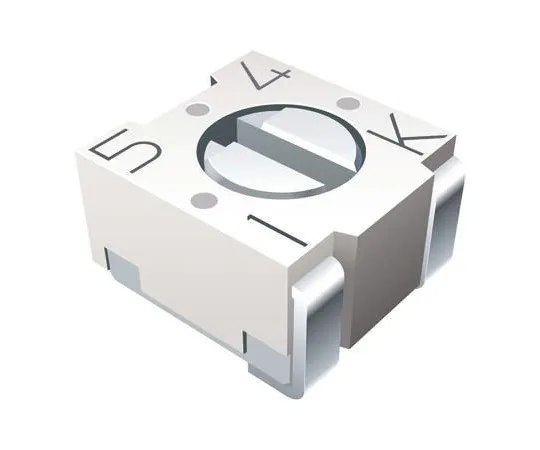

63-4969-26 10kΩ SMD Trimmer Potentiometer 0.125W Top Adjust Bourns 3313 Series 3313J-1-103E
Product Description
Product Model: 63-4969-26Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-4969-26
Product Brand: Bourns
Features
- 125mW 3mm 3313J Series. Horizontal 3 mm Square Sealed Trimming Potentiometer Compatible with surface mount manufacturing processes Rotor stop for "in-circuit" adjustment 100 cycle rotational and seal life Patent #5043695 assembly for seal integrity Plastic housing for RF applications
Spec
- Quantity:1piece
- Maximum Resistance : 10kΩ
- Mounting Type : Surface Mount
- Number of Turns : 1
- Orientation : Top Adjust
- Power Rating : 0.125W
- Series : 3313
- Termination Style : J-Hook
- Tolerance : ±20%
- Temperature Coefficient : ±100ppm/°C
- Shaft Diameter : 1.93 mm
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +125°C
- CODE No.:691-7336
