Electronic/Electrical Parts and Controll Equipments

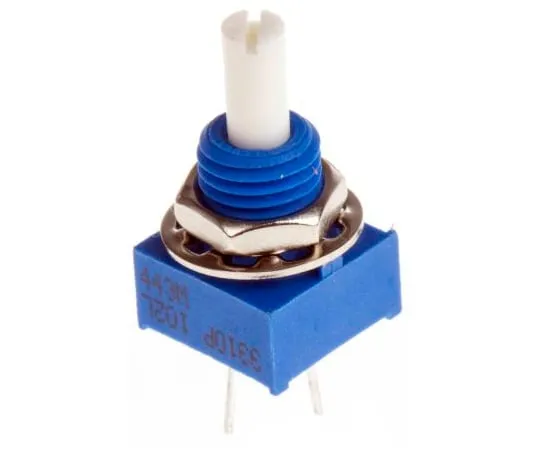

63-4969-19 Bourns 1 Gang Rotary Conductive Plastic Potentiometer with a 3.18 mm Dia. Shaft, 1kΩ, ±20%, 0.25W, Linear 3310P-001-102L 3310P-001-102L
Product Description
Product Model: 63-4969-19Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-4969-19
Product Brand: Bourns
Features
- Metal lock washer and nut. 9mm 3310P-001Series Sealed Panel Control. Compact package - saving board and panel space Sealed to withstand immersion board washing Panel and PCB mountable Plastic bushing and plastic shaft Temperature -40 to +125 °C
Spec
- Quantity：1piece
- Potentiometer Type : Rotary
- Maximum Resistance : 1kΩ
- Number of Gangs : 1
- Number of Turns : 1
- Power Rating : 0.25W
- Electrical Taper : Linear
- Element Material : Conductive Plastic
- Mounting Type : Panel Mount, Through Hole
- Termination Style : PC Pin
- Shaft Length : 12.7mm
- Shaft Diameter : 3.18 mm
- Tolerance : ±20%
- Series : 3310
- CODE No.:691-6888
