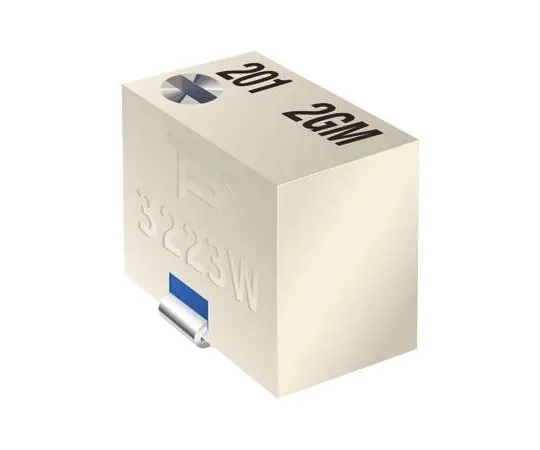

63-4968-81 10kΩ SMD Trimmer Potentiometer 0.125W Top Adjust Bourns 3223 Series 3223W-1-103E
Product Description
Product Model: 63-4968-81Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-4968-81
Product Brand: Bourns
Features
- 11-Turn 125mW 3mm Sealed Top Adjust 3223W Series. Bourns Standard 3223W Series top adjust SMD Trimpot® trimming potentiometer with a power rating @ 70 °C of 0.125W. The 3223W series cermet trimmer features a flush adjustment screw, a pick and place centring design for automated placement compatibility and is Sealed to withstand standard board wash processing. Meets EIA/EIAJ/IPC/VECI SMD standard trimmer footprint
Spec
- Quantity：1piece
- Maximum Resistance : 10kΩ
- Mounting Type : Surface Mount
- Number of Turns : 11
- Orientation : Top Adjust
- Power Rating : 0.125W
- Series : 3223
- Termination Style : J-Hook
- Tolerance : ±20%
- Temperature Coefficient : ±100ppm/°C
- Length : 3.9mm
- Minimum Operating Temperature : -65°C
- Maximum Operating Temperature : +150°C
- CODE No.:691-2482
