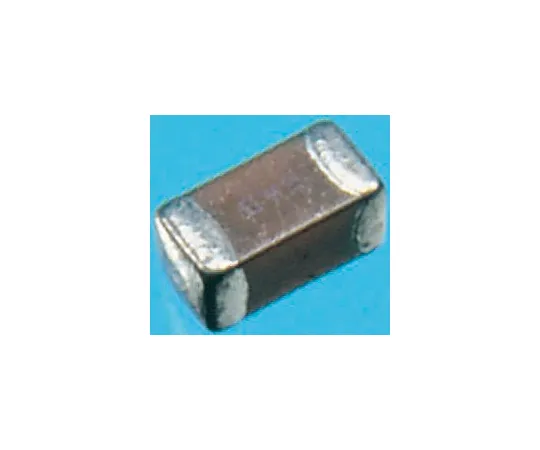

63-4968-58 KEMET 0603 (1608M) 4.7μF MLCC 6.3V dc ±10% SMD C0603C475K9PACTU C0603C475K9PACTU
Product Description
Product Model: 63-4968-58Product Brand: KEMET Features […]
Contact Us
Product Details
Product Model: 63-4968-58
Product Brand: KEMET
Features
- Kemet 0603 C0G and X5R dielectric. X5R dielectric series is "semi-stable" due to the maximum operating temperature of 85° X5R exhibits a predictable change in capacitance with respect to time and voltage and boasts a minimal change in capacitance with reference to ambient temperature. Capacitance change is limited to ±15% from -55°C to +85°C Applications include bypass and decoupling and for frequency discriminating circuits where Q and stability of capacitance characteristics are not critical. The C0G dielectric operates at a maximum of 125°C, and is stable Capacitance is not affected by a change in voltage and time These are temperature compensating and thus suitable for resonant circuit applications or those where Q and stability of capacitance characteristics are required Capacitance change is limited to ±30ppm/ºC from -55°C to +125°C
Spec
- Quantity:1bag(25pieces)
- Capacitance : 4.7µF
- Voltage : 6.3V dc
- Package/Case : 0603 (1608M)
- Mounting Type : Surface Mount
- Dielectric : X5R
- Tolerance : ±10%
- Dimensions : 1.6 x 0.8 x 0.8mm
- Length : 1.6mm
- Depth : 0.8mm
- Height : 0.8mm
- Series : C
- Maximum Operating Temperature : +85°C
- CODE No.:691-1164
