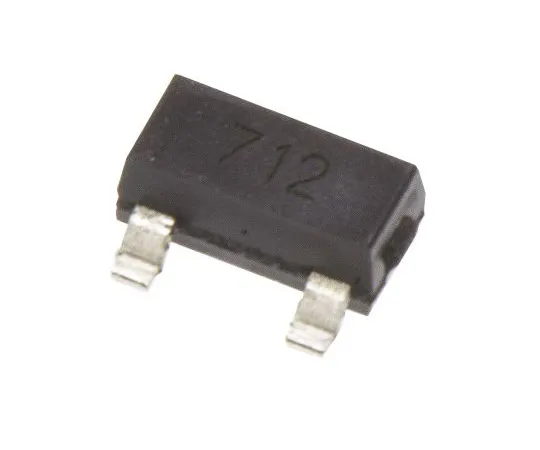

63-4968-53 Semtech SM712.TCT, Dual-Element Bi-Directional TVS Diode, 400W, 3-Pin SOT-23 SM712.TCT
Product Description
Product Model: 63-4968-53Product Brand: Semtech Feature […]
Contact Us
Product Details
Product Model: 63-4968-53
Product Brand: Semtech
Features
- SM712, Asymmetrical TVS Diode for Ext***ed Common-Mode RS-485. 400 Watts peak pulse power (tp = 8/20μs) Transient protection for asymmetrical data lines to: IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 12A (8/20μs) Protects two +12V to -7V lines Low capacitance Low clamping voltage Solid-state silicon avalanche technology
Spec
- Quantity：1bag(5pieces)
- Direction Type : Bi-Directional
- Maximum Clamping Voltage : 26V
- Minimum Breakdown Voltage : 13.3V
- Mounting Type : Surface Mount
- Package Type : SOT-23
- Maximum Reverse Stand-off Voltage : 12V
- Pin Count : 3
- Peak Pulse Power Dissipation : 400W
- Maximum Peak Pulse Current : 17A
- ESD Protection : Yes
- Number of Elements per Chip : 2
- Minimum Operating Temperature : -55 °C
- Maximum Operating Temperature : +125 °C
- Maximum Reverse Leakage Current : 20µA
- CODE No.:691-0811
