Electronic/Electrical Parts and Controll Equipments

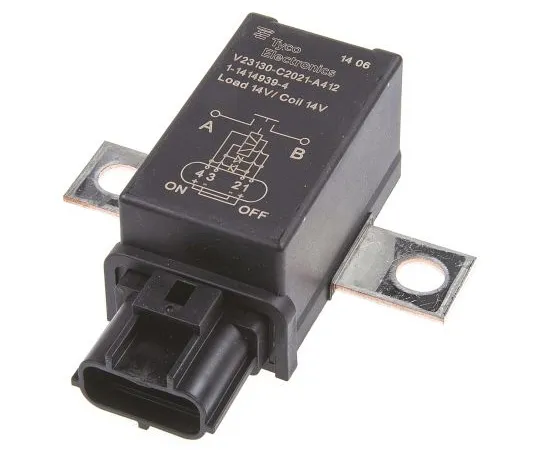

63-4968-32 TE ConnectivityBDS-A SPNO Automotive Relay Flange Mount, 12V dc Coil, 190A V23130C2021A412 1-1414939-4
model:
63-4968-32
brand:
TE Connectivity
Product Description
Product Model: 63-4968-32Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4968-32
Product Brand: TE Connectivity
Features
- Battery Disconnect Switch - BDS-A Series. Limiting continuous current 190 A at 85°C Electrically settable and resettable ON/OFF bistable device Suitable for voltage levels up to 42 V High peak current carrying capability up to 1500 A Dustproof IP54 rating Typical applications include preheating systems, battery disconnection to prevent fire ca***d by short circuits during an accident and energy management
Spec
- Quantity：1piece
- Coil Voltage : 12V dc
- Coil Power : 7W
- Coil Resistance : 4.7 Ω
- Isolation Coil To Contact : 500V rms
- Contact Configuration : SPNO
- Mounting Type : Flange Mount
- Switching Current : 190A
- Terminal Type : Screw
- Maximum Switching Voltage DC : 12V dc
- Height : 33mm
- CODE No.:690-0808
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-6987-44 Cypress Semiconductor FM18W08-SG Parallel FRAM Memory, 256kbit, 70ns, 2.7 → 5.5 V 28-Pin SOIC FM18W08-SG
model: 63-6987-44
brand: Cypress Semiconductor
Electronic/Electrical Parts and Controll Equipments
63-5001-99 50Ω RF Attenuator BNC Connector BNC Plug to BNC Socket 20dB, Operating Frequency 6GHz J01006A0025
model: 63-5001-99
brand: Telegartner
Electronic/Electrical Parts and Controll Equipments
63-7657-03 RS PRO, 9 Pole D-sub Connector, Male Interface Module, DIN Rail Mount 665-9699
model: 63-7657-03
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments

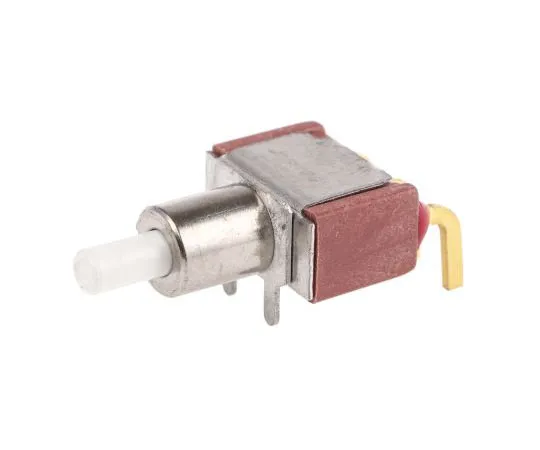

63-7980-81 C & K Single Pole Double Throw (SPDT) Momentary Push Button Switch, IP 40, PCB 8125SD9ABE
