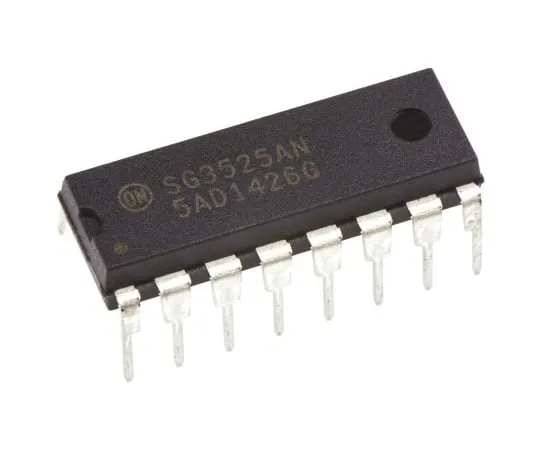

63-4968-12 ON Semiconductor SG3525ANG, Dual PWM Voltage Mode Controller, 400 mA, 400 kHz 16-Pin, PDIP SG3525ANG
model:
63-4968-12
brand:
ON Semiconductor
Product Description
Product Model: 63-4968-12Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-4968-12
Product Brand: ON Semiconductor
Features
- DC-DC Controllers, ON Semiconductor. Current mode and voltage mode DC-DC controllers for power conversion circuits.
Spec
- Quantity：1bag(2pieces)
- Number of PWM Outputs : 2
- Control Method : Voltage
- Rise Time : 100ns
- Fall Time : 50ns
- Maximum Switching Frequency : 400 kHz
- Mounting Type : Through Hole
- Package Type : PDIP
- Pin Count : 16
- Maximum Duty Cycle : 49%
- Output Current : 400 mA
- On/Off Pin : Yes
- Synchronous Pin : Yes
- Width : 6.85mm
- CODE No.:689-9950
