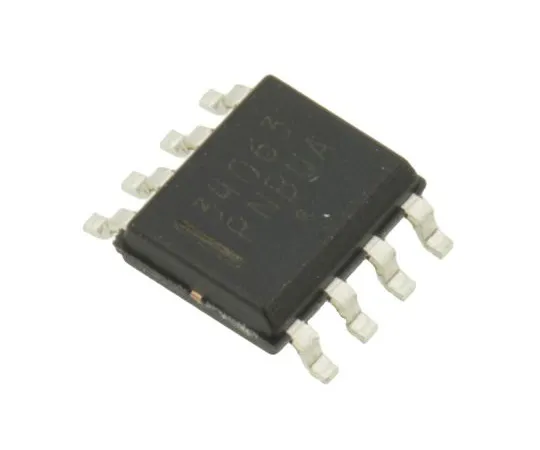

63-4968-11 ON Semiconductor MC34063ADR2G, 1, Buck/Boost Converter 1.5A 8-Pin, SOIC MC34063ADR2G
model:
63-4968-11
brand:
ON Semiconductor
Product Description
Product Model: 63-4968-11Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-4968-11
Product Brand: ON Semiconductor
Features
- MC34063A Buck Boost Inverting Switching Regulators. The ON Semiconductor MC34063A series of buck boost inverting switching regulators designed for step-down, step-up and voltage-inverting applications. These are monolithic ICs which contain a wide range of functionality required for DC-DC converters. This functionality includes: - Internal temperature compensated reference - Comparator - Controlled duty cycle oscillator with an active current limit circuit - Driver - High current output switch The MC34063A ICs are suitable for fan controllers and DC-DC power supplies. They offer a wide input voltage of -0.3 to +40 Vdc, which makes the MC34063A suitable for a wider range of applications.. Temperature range: 0 to +70 °C Low standby current Input voltage: 3-40 V Adjustable current limit Adjustable output voltage Frequency operation: to 100kHz Accuracy: precision 2% reference. Versions Available: ( ; 516-5095 516-5095 ) MC34063AP1G - PDIP-8 ( ; 125-0038 125-0038 ) MC34063AP1G - PDIP-8 - tube of 50 ( ; 103-5076 103-5076 ) MC34063ADR2G - SOIC-8 - reel of 2500 ( ; 689-9948 689-9948 ) MC34063ADR2G - SOIC-8 ( ; 184-4265 184-4265 ) MC34063ADG - SOIC-8 - tube of 98
Spec
- Quantity:1piece
- Regulator Function : Boost/Buck Controller
- Maximum Output Current : 1.5A
- Number of Outputs : 1
- Line Regulation : 3 mV、12 mV、30 mV
- Load Regulation : 0.022 V、3 mV、10 mV
- Mounting Type : Surface Mount
- Package Type : SOIC
- Pin Count : 8
- Dimensions : 5 x 4 x 1.5mm
- Height : 1.5mm
- Width : 4mm
- CODE No.:689-9948
