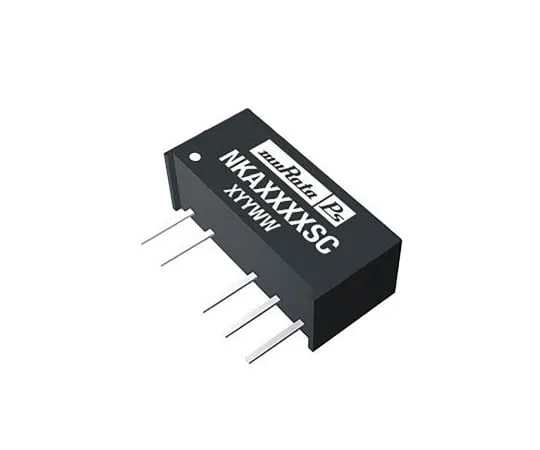

63-4967-52 Murata Power Solutions NKA 1W Isolated DC-DC Converter Through Hole, Voltage in 2.97 → 3.63 V dc, Voltage out NKA0305SC
model:
63-4967-52
brand:
Murata Power Solutions
Product Description
Product Model: 63-4967-52Product Brand: Murata Power So […]
Contact Us
Product Details
Product Model: 63-4967-52
Product Brand: Murata Power Solutions
Features
- Murata 1W SIP Dual Output Unregulated Isolated DC-DC Converter - NKA Series. Isolated SIP7 module 3kVdc isolation Fully encapsulated UL 94V-0 package material MTTF up to 1.6 million hours
Spec
- Quantity：1piece
- Output Voltage : ±5V dc
- Input Voltage Range : 2.97 → 3.63 V dc
- Input Voltage Nominal : 3.3 V dc
- Isolation Voltage : 3000V dc
- Power Rating : 1W
- Output Current : ±100mA
- Mounting Type : Through Hole
- Number of Outputs : 2
- Package : SIP
- Minimum Temperature : -40°C
- Maximum Temperature : +85°C
- Depth : 7.55mm
- CODE No.:689-4949
