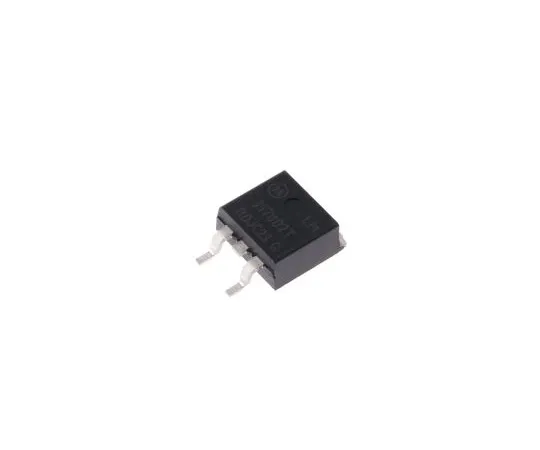

63-4967-13 ON Semiconductor, 1.2 → 37 V Linear Voltage Regulator, 1.5A, 1-Channel, Adjustable 3-Pin, D2PAK LM317BD2TR4G LM317BD2TR4G
model:
63-4967-13
brand:
ON Semiconductor
Product Description
Product Model: 63-4967-13Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-4967-13
Product Brand: ON Semiconductor
Features
- 1.2 – 37 V Linear voltage regulator, ON Semiconductor. ON Semiconductor LM317 series is an adjustable Linear Voltage Regulator. The 3-terminal positive voltage regulator can offer an output current of 1.5A and more with an output voltage ranging between 1.2 to 37 V. The easy to *** LM317 adjustable voltage regulator can be ***d in various applications such as on-card regulation and being utilised as a programmable output regulator it can be ***d as a precision current regulator by attaching a fixed resistor between the adjustment and output. Output Voltage Range: 1.25 V to 37 V Output Current: 1.5 A Short circuit current limiting, Thermal protection, and Safe-area compensation Floating Operation for High-Voltage Applications
Spec
- Quantity:1bag(2pieces)
- Output Voltage : 1.2 → 37 V
- Maximum Output Current : 1.5A
- Package Type : D2PAK
- Output Type : Adjustable
- Mounting Type : Surface Mount
- Maximum Input Voltage : 40 V
- Pin Count : 3
- Minimum Operating Temperature : -40 °C
- Maximum Operating Temperature : +125 °C
- Number of Outputs : 1
- Polarity : Positive
- Reference Voltage : 1.3V
- CODE No.:688-9200
