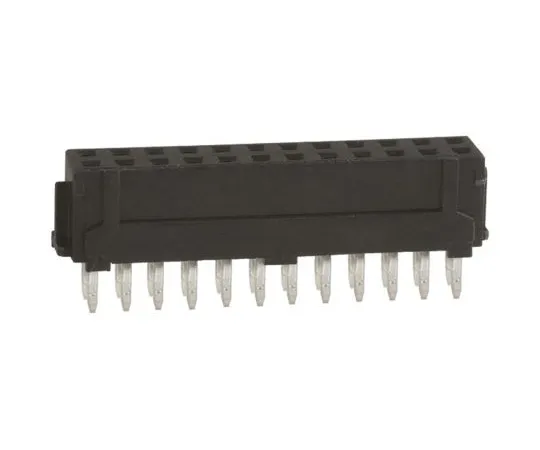

63-4966-71 Hirose DF11, 24 Way, 2 Row, Straight PCB Header DF11-24DS-2DSA(05)
Product Description
Product Model: 63-4966-71Product Brand: Hirose Features […]
Contact Us
Product Details
Product Model: 63-4966-71
Product Brand: Hirose
Features
- DF11 2mm SMT receptacle connectors with part numbers DF11CZ-xxxx-xx(22) have tin plated contacts DF11 2mm SMT pin header connectors with part numbers DF11CZ-xxxx-xx(52) have gold plated contacts. Hirose DF11 Series 2.00 mm PCB Socket Connectors. DF11 series 2.00 mm PCB socket connectors with a compact double row design and a depth of less than 5 mm. This space saving design allows a double row of contacts to be provided in the same space as a single row connector. The housings of these DF11 series PCB sockets feature guide ribs that prevent incorrect insertion and twisting when mating. Metal fittings on the SMT versions increase retention on the PCB and prevent solder peeling. These DF11 series 2.00 mm PCB sockets are available as through hole or SMT mounting and mate with DF11 series PCB headers for *** in board to board applications. Features and Benefits. Compact, space saving design 5 mm depth allows double row contact configuration in same space as single row connector Guide ribs to prevent mismating Metal fittings for secure PCB retention Suitable board to board applications. Applications. Portable devices that require multiple signals with a space saving footprint. Digital cameras LCD displays Digital video recorders Car navigation Access control units Measurement devices
Spec
- Quantity:1bag(10pieces)
- Series : DF11
- Pitch : 2mm
- Number of Contacts : 24
- Number of Rows : 2
- Body Orientation : Straight
- Shrouded/Unshrouded : Shrouded
- Connector System : Board to Board
- Termination Method : Solder
- Contact Material : Brass
- Current Rating : 2A
- CODE No.:688-8913
